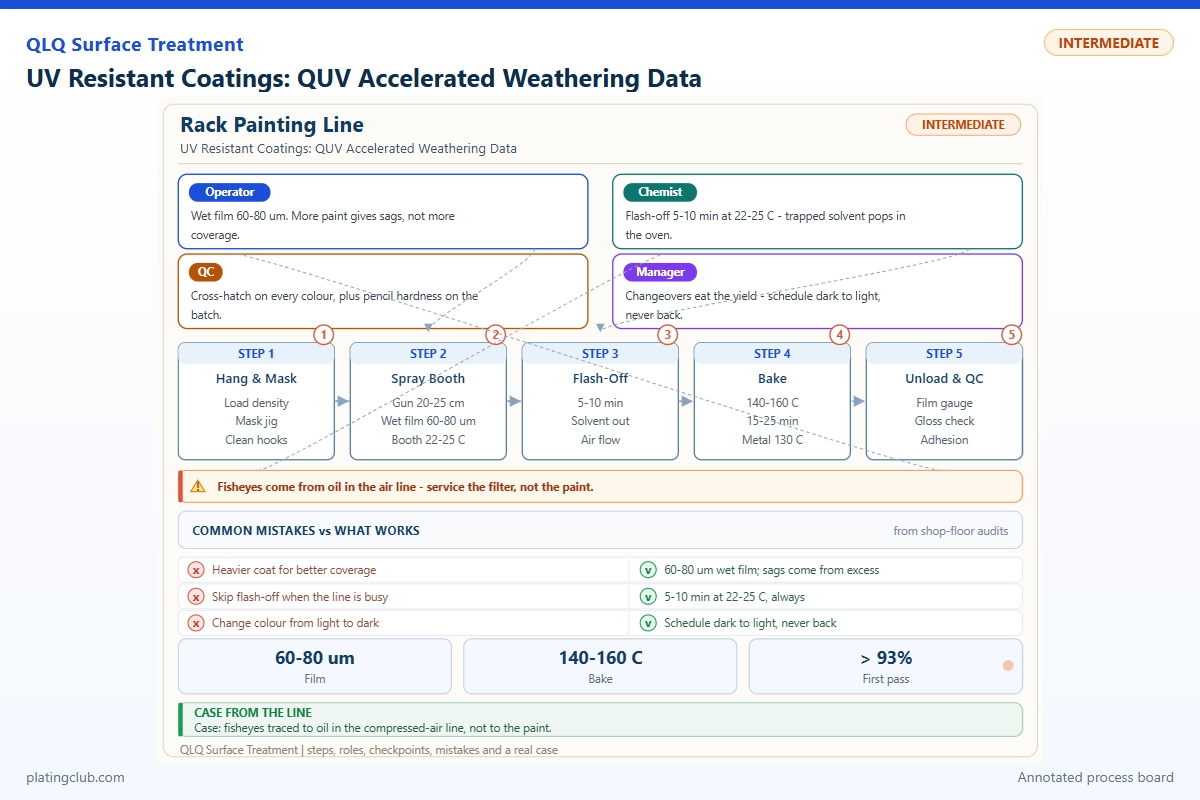

Painting · Management-level technical guidance
UV Resistant Coatings: QUV Accelerated Weathering Data
A weathering report should support a production decision, not merely display a large exposure-hour number. For a surface-treatment manager, the useful questions are whether appearance survives, whether adhesion remains acceptable, and whether the tested coating system represents the hardware actually shipped.
This guide separates published experimental observations from proposed plant qualification settings. No QLQ batch-specific QUV report was available in the reviewed knowledge base; QLQ-specific durability results remain unconfirmed.
1. Define the claim before loading the chamber
Specify substrate, pretreatment, plating stack, primer, topcoat, colour, dry-film thickness and cure history. A clear-coated nickel-plated zinc-alloy buckle is not equivalent to a painted steel panel. Curved edges, trapped cleaning residues and contact marks can dominate failures even when the resin performs well on flat laboratory specimens.
Keep light stability, corrosion protection and mechanical durability as separate approval gates. QUV exposure evaluates deterioration under its selected light, temperature and moisture sequence; it does not automatically demonstrate salt resistance, abrasion life or a service warranty. Require separate corrosion and handling tests where the application demands them.
The local QLQ painting notes identify pretreatment, viscosity, coating thickness and curing as relevant controls. They do not establish a weathering specification. Their general baking guidance must not be applied automatically to the solventborne two-component polyurethane development example below.
2. Read the experimental data without inventing missing results
The following comparison reproduces selected baseline measurements from Table 10 of the published study Preparation and Performance Optimization of Two-Component Waterborne Polyurethane Locomotive Coating. These are experimental sample data, not QLQ production batches or post-weathering values. The same paper discusses weathering, but these baseline numbers alone cannot establish retained gloss.
| Specimen | Dry-film thickness | 20° gloss | 60° gloss | 85° gloss | Test condition |
|---|---|---|---|---|---|
| Formulation 1 | 56–63 µm | 85.6 | 92.1 | 101 | Published baseline; stated gloss measurement angles |
| Formulation 2 | 59–62 µm | 82.6 | 90.2 | 101 | Published baseline; stated gloss measurement angles |
| Formulation 6 | 56–61 µm | 73.1 | 87.1 | 101 | Published baseline; stated gloss measurement angles |
| Formulation 7 | 53–63 µm | 14.7 | 51.7 | 95.7 | Published baseline; stated gloss measurement angles |
Thickness bands overlap while initial gloss differs. Therefore, compare each coating against its own unexposed baseline rather than ranking aged specimens by final gloss alone. Do not attach hardness or salt-spray numbers to these specimens unless the source explicitly links those measurements.
As a separate supplier-reported benchmark, KBS MAXX Clear lists 2H pencil hardness at 72 hours, 1,000 hours of QUV 313B testing, and 1,000 hours of ASTM B117 salt spray on Q-Steel panels at 3–4 mils dry film, equivalent to 76.2–101.6 µm. These are not a matched UVA-340 batch comparison. Obtain the full report before transferring the claim to thin coatings on plated hardware.
3. Build a reproducible QUV qualification programme
Use the customer-required method and edition. Record lamp type, irradiance wavelength, temperature sensor convention, moisture stage and interruptions. Q-Lab's published adhesives and fillers study used UVA-340 lamps, eight hours of light at 0.76 W/m²/nm at 340 nm and 60°C, followed by four hours of condensation at 50°C. That is a documented example, not a universal coating cycle.
For a development screen using that agreed cycle, prepare three independently mixed lots per candidate and three exposed panels per lot. Retain unexposed controls and run the incumbent coating in every chamber campaign. Include actual hardware alongside flat panels; measure representative edges separately. Schedule observations at 0, 250, 500 and 1,000 hours, recording elapsed time and completed cycles.
Measure gloss with a fixed geometry, colour with one agreed colour-difference equation, adhesion after specified recovery, and cracking or blistering with photographs and defined ratings. Proposed starting gates are at least 80% gloss retention and ΔE00 no greater than 2.0 at the agreed endpoint, plus no visible cracking or blistering. These are internal development targets requiring customer approval, not standard-mandated limits.
Gloss retention (%) = 100 × aged gloss / initial gloss. Calculate per panel before summarising the lot. Report mean, spread, worst specimen and exclusions. Never substitute a numerical zero for a missing reading. On very low-gloss coatings, absolute gloss change may be more informative than a percentage.
4. Working Data & Formula Notes
This complete 100-part, solventborne acrylic/aliphatic polyurethane clearcoat is an engineering development starting point, not a released QLQ recipe. Assume acrylic polyol solution at 60% solids, hydroxyl number 100 mg KOH/g of resin solids, and solvent-free HDI trimer at 21.8% NCO. Substitutions require recalculation and compatibility testing.
| Component | Range | Typical | Function | Replenishment |
|---|---|---|---|---|
| Acrylic polyol solution; Part A | 58–62 parts | 60.00 | Film former; supplies reactive OH | Weigh into fresh Part A; verify solids and OH certificate |
| HDI trimer; separate Part B | Recalculate for NCO/OH 1.00–1.10 | 12.90 | Aliphatic crosslinker | Add only to fresh mix; never revive aged mixed paint |
| Tinuvin 1130 UV absorber | 1–3% of binder solids | 0.98 | Attenuates UV reaching the binder | Premix in Part A; maintain approximately 2% binder basis |
| Tinuvin 292 HALS | 0.5–2% of binder solids | 0.49 | Limits light-induced radical damage | Premix in Part A; maintain approximately 1% binder basis |
| Compatible flow additive, as supplied | 0.10–0.30 parts | 0.20 | Levelling and surface uniformity | Fresh-batch dosing only; screen for intercoat adhesion |
| Compatible urethane catalyst solution, assumed 10% active | 0.05–0.15 parts | 0.10 | Cure-rate adjustment | Fresh-batch dosing; validate pot life at plant temperature |
| Dry, urethane-grade solvent blend | Balance to 100 | 25.33 | Application viscosity and evaporation balance | Use approved blend only; log any permitted reduction |
| Total | 100 parts | 100.00 | Complete mixed batch | No uncontrolled tank top-up |
Binder solids are approximately 36 + 12.9 = 48.9 parts, excluding additives. BASF recommends the listed absorber/HALS loading scale in its Tinuvin 292 technical sheet; its Tinuvin 1130 technical sheet identifies pairing with HALS for outdoor applications. These references support additive selection, not the performance of this proposed complete formula.
OH equivalents = resin-solids mass × OH number / 56,100. NCO equivalents = hardener mass × NCO mass fraction / 42. Using grams, this example gives approximately 0.0642 OH equivalents and 0.0670 NCO equivalents: NCO/OH ≈ 1.04. The calculation excludes other reactive ingredients; account for their functionality before release.
Disperse additives into Part A, check clarity and filter using the validated filter grade. Add Part B immediately before application. Validate flash-off, cure and handling time using the selected resin system. Replenishment means controlled fresh-batch preparation, not chemical additions to an ageing two-component pot.
5. Normal variation versus intervention thresholds
These provisional engineering bands apply only to the development programme above. Values between the normal band and the intervention limit require investigation. Replace them with validated control limits after capability studies; neither pH nor electroplating-bath limits belong in a solventborne clearcoat control plan.
| Parameter | Normal band | Danger / hold threshold | Response |
|---|---|---|---|
| Trial clearcoat dry film | 25–30 µm | <20 or >35 µm | Hold affected trial; inspect edges and sagging |
| NCO/OH ratio | 1.00–1.10 | <0.95 or >1.15 | Quarantine mix; check weighing and certificates |
| UV absorber, binder basis | 1.8–2.2% | <1.5 or >3.0% | Check dosing and compatibility; repeat qualification |
| HALS, binder basis | 0.9–1.1% | <0.5 or >2.0% | Review additive identity and batch ledger |
| Viscosity at fixed temperature | Within ±5% of approved fresh-mix value | Rise >15%, or validated pot-life expiry | Stop use; do not solvent-thin to conceal reaction |
| QUV irradiance, example cycle | 0.76 ±0.02 W/m²/nm at 340 nm | Deviation >0.04 | Flag interval; check calibration and agreed method tolerance |
| QUV UV-stage temperature | 60 ±2°C | Deviation >3°C | Review exposure validity against governing method |
| QUV condensation-stage temperature | 50 ±2°C | Deviation >3°C | Check water, heater and sensor; document interruption |
Trend results by resin lot, operator, coating position and chamber campaign. A stable mean can hide failing thin edges. Avoid pooling multiple substrates into one average; that obscures the cause and weakens the release decision.
6. Two reference cases managers can use
Case A: locomotive coating specimens
The published polyurethane study provides a useful lesson in baseline discipline: similar thickness does not guarantee similar initial appearance. Apply that lesson by photographing every trial before exposure and retaining its individual gloss reading. Do not transfer locomotive coating outcomes to zinc-alloy hardware or confuse the paper's waterborne formulation with the solventborne example here.
Case B: transparent epoxy under different light sources
Q-Lab's adhesives/fillers comparison found more pronounced yellowing and fading in fluorescent-UV exposure than in xenon exposure for certain epoxy specimens after 500 hours; some also developed cracking or crystallisation. This demonstrates why lamp choice matters. If field complaints involve colour behind glass or visible-light-sensitive pigments, agree an appropriate xenon programme rather than escalating QUV irradiance blindly.
Neither case is presented as a QLQ customer installation. Use them to structure an investigation, not to promise identical outcomes. For plated hardware, a practical diagnostic split is intact appearance with adhesion failure versus intact adhesion with yellowing: the former directs attention to the interface, while the latter directs attention to light stability.
7. Engineer Notes
- Assign unique IDs before spraying; connect each panel to pretreatment, plating lot, mix sheet and actual cure record.
- Check dry film on flat witness panels and hardware edges. Document the measurement method's suitability for multilayer plated parts.
- Run the incumbent beside every candidate; randomise positions and follow the laboratory's documented repositioning procedure.
- Inspect condensation wetting and log chamber alarms. Label suspect exposure intervals instead of silently restarting the hour counter.
- Measure after one defined recovery period. Photograph wet whitening separately so reversible moisture effects are not mistaken for permanent damage.
- Retain one sealed, unmixed Part A sample per lot. Compare fresh and aged mixtures; never return mixed polyurethane to stock.
- Require EHS approval for isocyanate spraying: verified extraction, exposure assessment, suitable respiratory protection and controlled solvent handling. OSHA's spray-operation guidance addresses toxic exposure and fire hazards.
8. Shift Checks
| Shift stage | Check item | Frequency | Acceptance criterion | Record |
|---|---|---|---|---|
| Before shift | Materials and weighing equipment | Every start; each new lot | Approved identities; valid calibration; correct certificates | Material ledger and balance check |
| Before shift | Extraction and safety controls | Every start | EHS-approved operating conditions confirmed | Safety sign-off |
| Before shift | Chamber recipe and specimen map | Every load | Matches authorised cycle; controls present | Recipe export and load map |
| During shift | Mix age and viscosity | Each mix; hourly while used | Within validated pot life and viscosity band | Time-stamped mix card |
| During shift | Film build and cure trace | First-off; hourly; after adjustment | Approved thickness; validated cure achieved | Witness-panel readings and cure log |
| During shift | QUV temperature and irradiance | Continuous logging; shift review | Within governing method and internal alarm limits | Exposure file and exceptions |
| After shift | Material reconciliation | Every end | Mixed leftovers segregated; additions accounted for | Usage and waste ledger |
| After shift | Specimen observations | Scheduled checkpoints | Complete readings; failures identified, not averaged away | Photos and panel-level worksheet |
| After shift | Handover and containment | Every end | All deviations assigned; suspect lots held | Supervisor handover |
9. FAQ: technician-to-AI questions
These are suggested technician prompts, not claimed transcripts of customer enquiries.
“AI, does passing 1,000 hours of QUV mean this clearcoat will last five years outdoors?”
No universal conversion is valid. Location, orientation, moisture, pollution and formulation affect the relationship. Use correlated outdoor exposure and a defined failure endpoint before discussing service life. Treat QUV primarily as controlled comparative evidence.
“AI, our gloss is still good but the coating peels after condensation; should I add more UV absorber?”
First inspect the interface and cure. Compare unexposed adhesion, retained controls, cleaning records and failed surfaces. Run a controlled pretreatment split. Increasing absorber cannot repair contamination or an unsuitable primer and may change compatibility.
“AI, the cheaper batch has better final gloss; can I approve the supplier change now?”
Compare retention from each baseline, colour, adhesion and worst-panel behaviour across independent lots. Confirm equal thickness and cure, then repeat with actual parts. Approval requires the agreed endpoint and change-control sign-off, not one favourable gloss reading.
10. What Would You Like to Solve?
Send the substrate and plating stack, current coating specification, thickness map, cure record, chamber cycle and panel-level results to [email protected]. State whether the problem is yellowing, gloss loss, whitening or peeling. For coordinated equipment, chemistry and process support, see the turnkey surface-treatment line guide.
Local knowledge-base context: QLQ-Obsidian-Vault / 02-Product Knowledge / 07-Surface Treatment / Painting Process and Painting Defect Analysis. Both reviewed notes are draft guidance; they support the workflow context, not a certified QUV performance claim. Release only after formulation validation and customer-agreed testing.
