Curing Ovens & Tunnel Ovens — Paint Cure Profile, Temperature Control & Troubleshooting

The cure cycle is the final quality gate: under-cure = sticky parts, over-cure = brittle discolored rejects. Master the ramp, soak and cool phases.

The Cure Cycle — Ramp, Soak & Cool

The oven is the last chance to get quality right — profile matters more than peak temperature

1The Cure Profile — Ramp, Soak & Cool

Ramp (3–8 min): bring part to cure temperature at controlled rate. Soak (15–25 min): hold at target temp for cross-linking. Cool (5–10 min): slow cool prevents thermal shock and crack formation. Profile varies by paint chemistry.

Key Parameters

Ramp time: 3–8 min

Soak time: 15–25 min

Cool time: 5–10 min

Ramp rate: 10–25 °C/min

固化曲线图三段固化曲线图表：升温段(斜率)→保温段(平台)→冷却段(下降)，标注各段时间温度

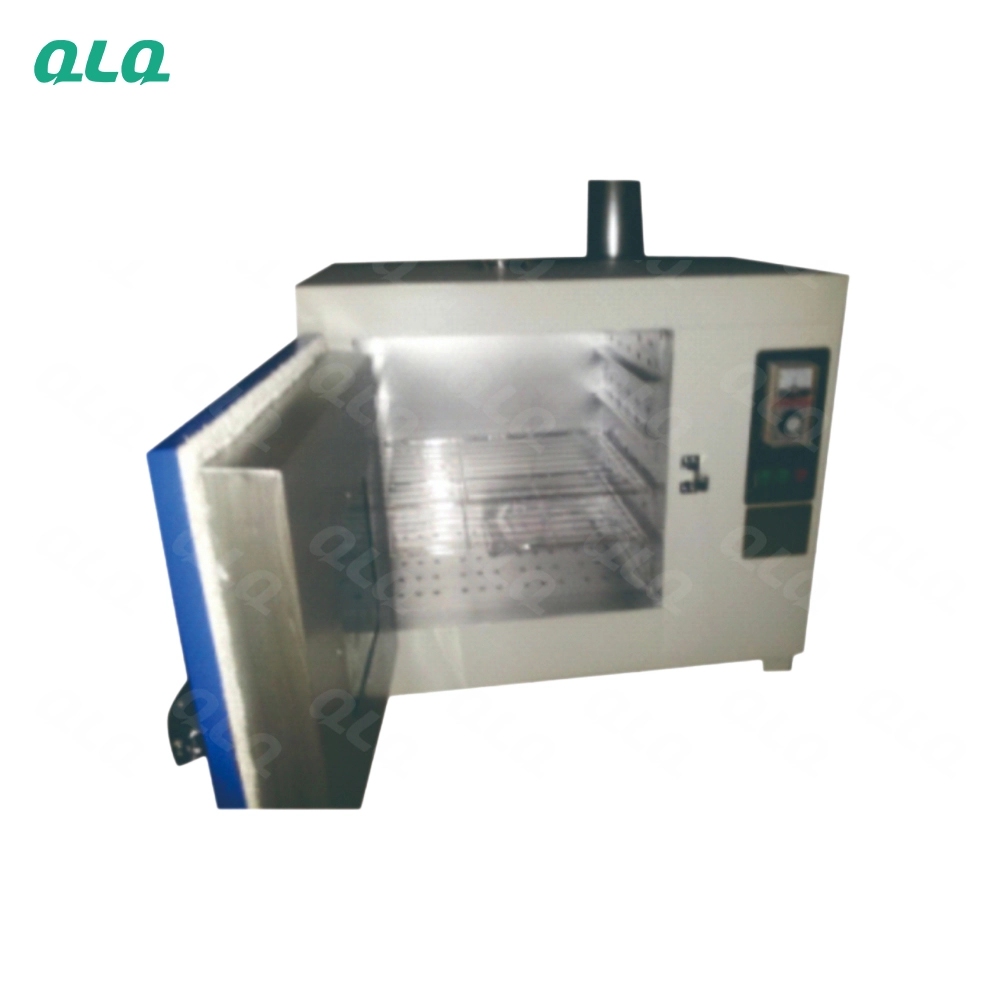

2Tunnel Oven vs Box Oven

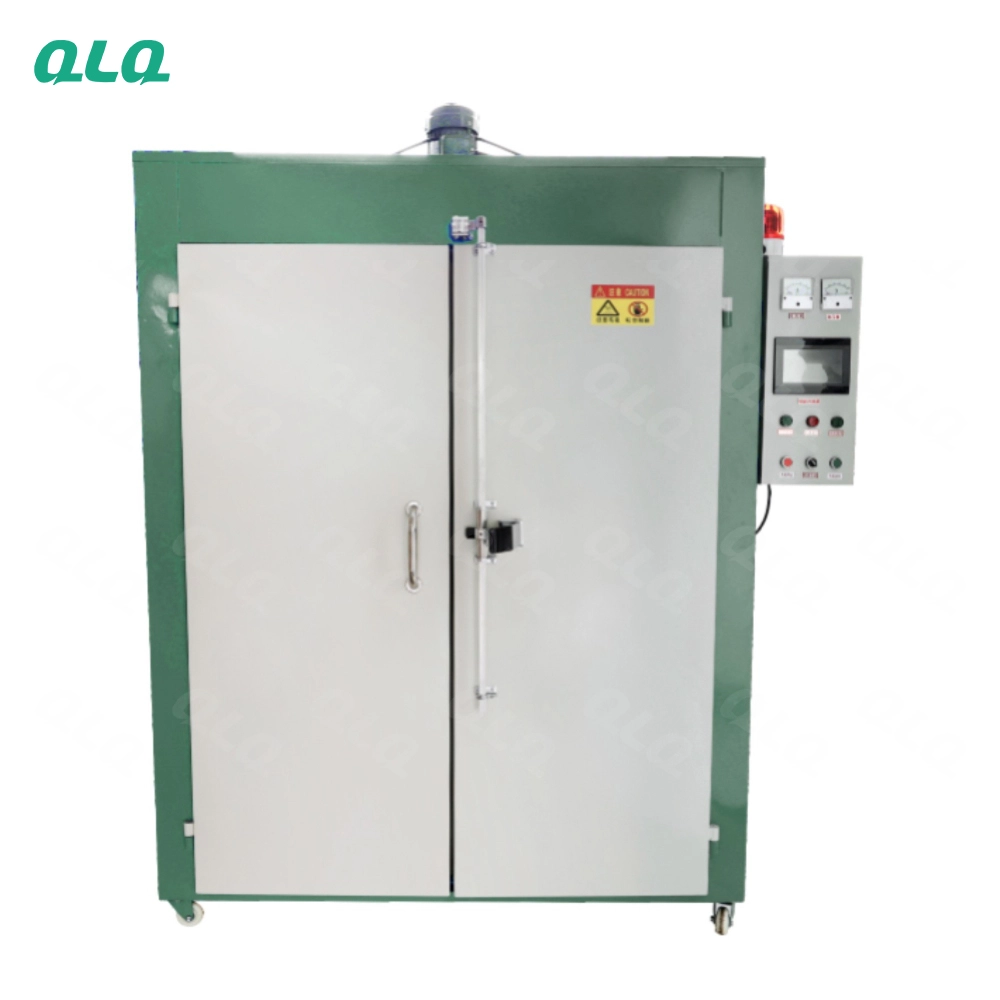

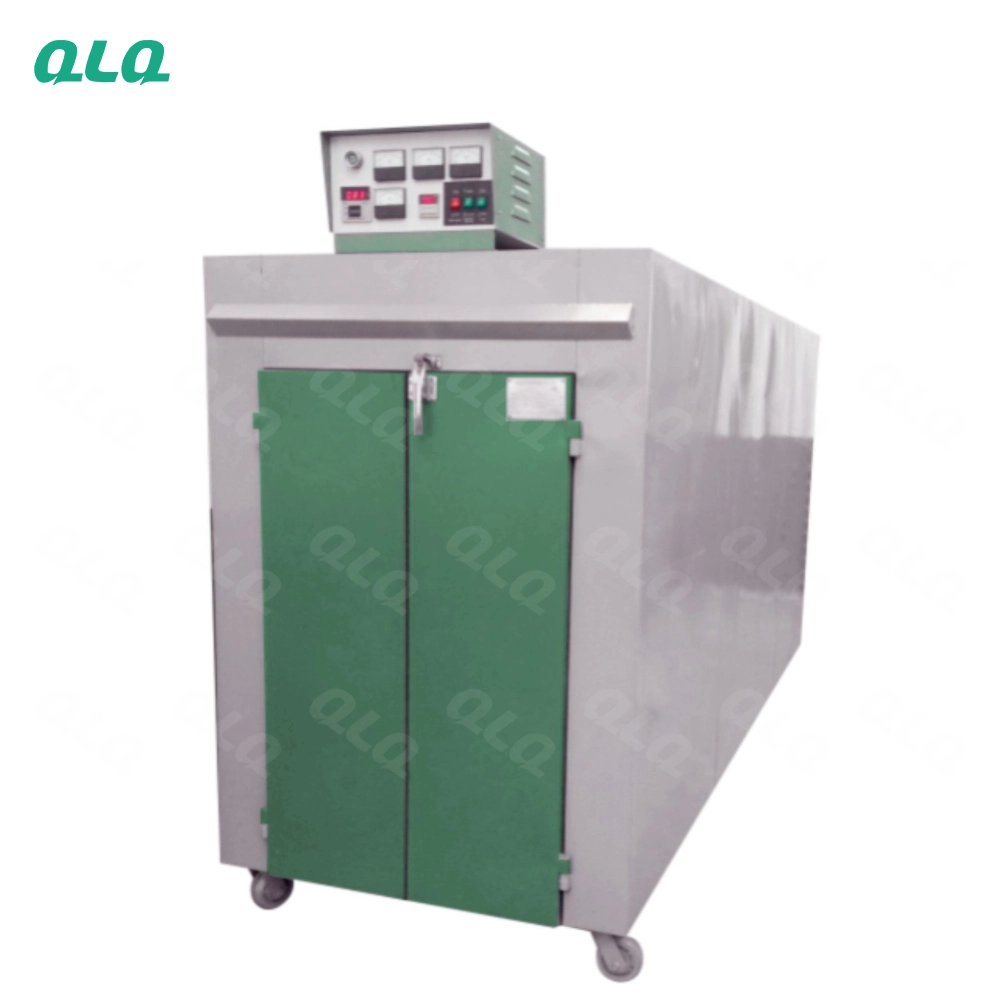

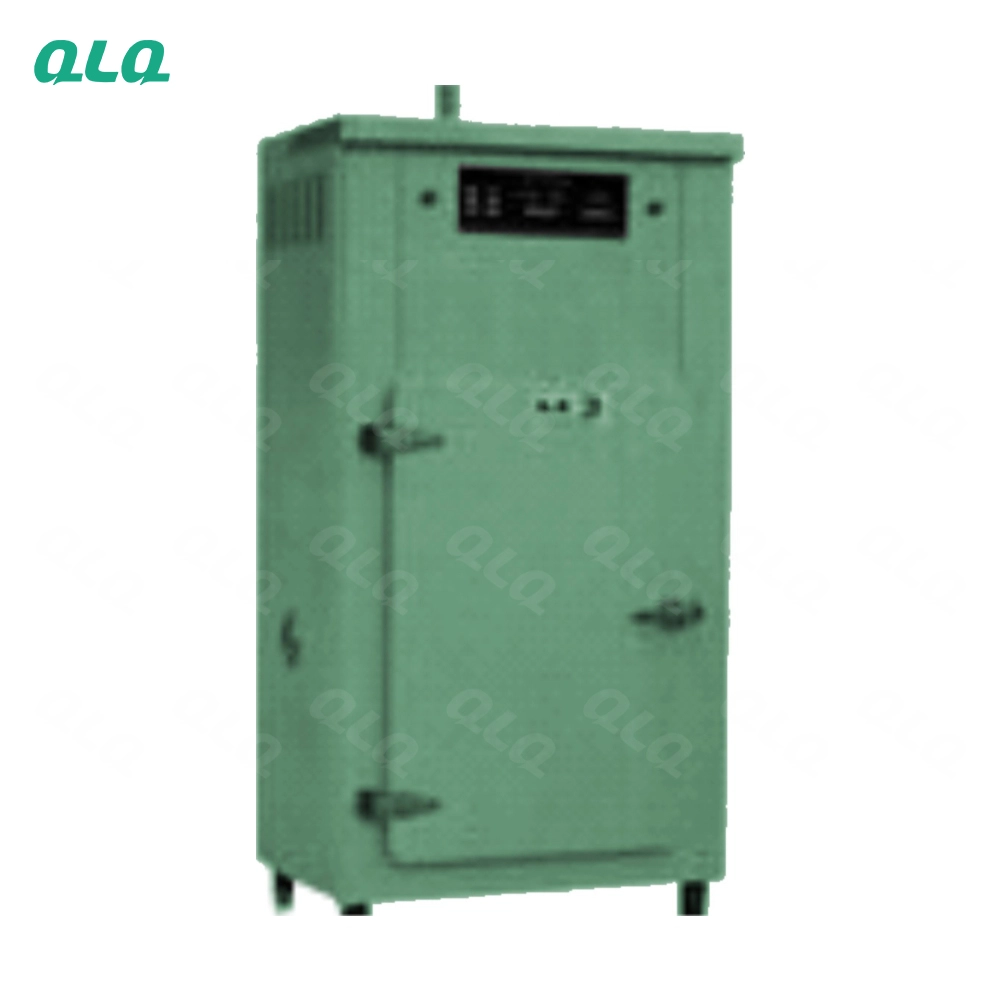

Tunnel oven: continuous conveyor, parts move through zones (pre-heat → soak → cool). Box oven (batch): whole load heats together. Tunnel = high throughput, consistent profile. Box = flexible, good for mixed batches.

Key Parameters

Tunnel oven capacity: Continuous, 1000+ pcs/h

Box oven capacity: Batch, 100–500 pcs/cycle

Temperature gradient: Tunnel: ±3 °C / Box: ±5 °C

Energy efficiency: Tunnel: better (zonal)

Before

After

3Temperature Uniformity (±5 °C)

Uniformity across the oven width (left-center-right) must be within ±5 °C. Hot spots = over-cured edges; cold spots = under-cured centers. Use 9-point thermocouple grid per zone to validate. Burner tuning and airflow baffles maintain balance.

Key Parameters

Uniformity spec: ±5 °C

Validation: 9-point thermocouple grid

Check frequency: Daily / monthly certification

Key control: Airflow velocity & damper position

4Common Troubleshooting — Under vs Over Cure

Under-cure (sticky/tacky): too short soak time, low temp, or thick film. Over-cure (yellowing/brittle): too long soak, high temp, or wrong catalyst. Use MEK rub test and pencil hardness to verify cure level.

Key Parameters

Under-cure signs: Tacky, thumbprint visible

Over-cure signs: Yellow, brittle, low gloss

MEK double rubs: 50+ = well cured

Pencil hardness spec: ≥ H per paint spec

5Energy Consumption & Capacity Matching

Tunnel ovens consume 300–800 kWh per ton of product. Match oven speed to production rate — running empty belt wastes energy. Heat recovery from exhaust (economizer) cuts 15–30% gas use. Insulation thickness ≥ 150 mm mineral wool.

Key Parameters

Energy consumption: 300–800 kWh/ton

Heat recovery saving: 15–30% gas

Insulation: ≥ 150 mm mineral wool

Empty belt penalty: 30–50 kW continuous

▼

Troubleshooting Common Oven Problems

Diagnose and fix the five most frequent curing issues

Problem	Likely Cause	Check This	Fix
Sticky / tacky parts (under-cure)	Soak time too short or temp too low	Thermocouple reading at part surface	Increase soak 3–5 min or raise temp 5–10 °C
Yellowing / darkening (over-cure)	Temp too high or dwell too long	Oven zone temp log and belt speed	Reduce soak time or lower temp 5–10 °C
Orange peel surface	Flash-off too short before cure	Pre-heat zone temp and air velocity	Extend pre-heat or reduce paint viscosity
Pinholing / popping	Solvent trapped under cured skin	Ramp rate too fast	Slow ramp rate to 10–15 °C/min
Belt-side parts under-cured	Temperature gradient across belt	9-point thermocouple map	Adjust airflow dampers or add baffles

📌 Curing Oven Cheat Sheet

Typical ramp time3–8 min

Typical soak time15–25 min

Uniformity spec±5 °C

Under-cure = stickyIncrease time or temp

Over-cure = yellow/brittleReduce time or temp

Energy use per ton300–800 kWh

Heat recovery saving15–30% gas

⚠ Never guess the part temperature from the oven displayAir temperature and part temperature can differ by 20–40 °C, especially for thick or dense parts. Always use a contact thermocouple or witness dots (temperature-indicating labels) on actual parts during profile validation. A 10 °C error at the soak zone means a completely different cure state.

FAQ

How often should I profile my oven?

Monthly for high-production lines, quarterly for medium volume, and immediately after any burner or airflow change. Use 9 thermocouples across the belt at part height. Record the profile report for ISO/QS documentation.

What is the ideal ramp rate for waterborne paint?

12–18 °C/min. Too fast (> 25 °C/min) causes solvent popping. Too slow (< 8 °C/min) allows sagging before the paint sets. Waterborne is more sensitive to ramp rate than solvent-based because water evaporates slower than solvents.

Can I use one oven for different paint chemistries?

Yes, but you need zone-adjustable temperature control. Pre-heat at 80 °C for waterborne flash-off, then ramp to 160–180 °C for epoxy cross-linking. A 3-zone oven (pre-heat → cure → cool) is the minimum for multi-chemistry flexibility.

Why is my energy bill rising if throughput hasn't changed?

Check: (1) exhaust damper position — too much air bleed wastes heat; (2) insulation condition — damaged or wet insulation loses 30% efficiency; (3) burner nozzle wear — clogged nozzles burn fuel-rich, wasting gas. An oven audit typically finds 10–20% saving opportunities.

What is the maximum belt speed for 25 μm e-coat cure?

At 170 °C with a 3-zone tunnel (2.5 m each), belt speed of 0.5–0.8 m/min gives 18–20 min total dwell. For 25 μm film, 15 min at metal temperature ≥ 160 °C is sufficient. Faster than 1.0 m/min risks under-cure at the center.

Get a Free Quote Today

Send us your samples or drawings — our engineers reply within 24 hours with pricing and technical advice.

Workshop Planning Data

Curing Oven — Data Zinc Alloy Finishing Managers Need

Curing ovens and tunnel ovens bake painted, lacquered or e-coated zinc alloy parts to full cross-link, setting film properties like hardness, chemical resistance and salt-spray performance.

260 m²Workshop Area

8 peopleTeam Size

190 kWInstalled Power

600k-1.2M pcs/dayDaily Output (10 h)

Quality Inspection & Control

Check item	Method	Acceptance standard
Cure temperature profile	Data-logger 6 points	Part reaches 120-180 °C per coating spec
Cure time	Conveyor speed log	Dwell 15-30 min at peak
Film hardness	Pencil hardness	≥ 2H for baked finishes
Chemical resistance	MEK double-rub	≥ 50 rubs no film removal
Color / gloss stability	Gloss meter	Gloss change < 5 units vs standard
Overbake prevention	Part temperature log	Peak within ±10 °C of spec

Workshop Layout & Floor Area

Zone	Area
Tunnel oven + conveyor	110 m²
Batch ovens	60 m²
Loading / unloading zone	40 m²
QA & temperature lab	20 m²
Utility & lockers	30 m²
Total workshop	260 m²

Manpower & Shift Plan

Role	Headcount
Oven operators	4
QC / data-logger inspector	2
Supervisor	1
Maintenance	1
Total (2 shifts × 10 h)	8

Power & Utility Demand

Equipment	Demand
Tunnel oven heating (gas/electric)	110 kW
Batch ovens (2 × 25 kW)	50 kW
Conveyor drives	10 kW
Exhaust / afterburner	12 kW
Lighting & auxiliary	8 kW
Installed total	190 kW
Typical running load	≈ 150 kW

Production Flow Chart

LoadParts on trays / conveyor

PreheatSolvent flash-off zone

CurePeak temperature dwell

CoolControlled cooling zone

InspectHardness, MEK, color check

Unload & PackUnload and pack

Daily Capacity — 10-Hour Operating Day

Parameter	Value
Oven cycle	20-45 min
Load per batch / hour	200-400 kg
Batches per 10 h day	16-24
Daily output	600,000-1,200,000 pcs
Monthly output (26 days)	15-31 million pcs

Output Value Estimate

Parameter	Value
Processing fee per piece	USD 0.0015-0.004
Daily output value (10 h)	USD 1,200-3,000
Monthly output value	USD 31,000-78,000
Annual output value	USD 375,000-940,000
