Barrel plating is the workhorse process for small zinc alloy hardware - sliders, buttons, D-rings, rivets and loops. Parts tumble inside a rotating perforated barrel, allowing thousands of pieces to be plated in one load. The trade-off is contact marks and a slightly less uniform deposit than rack plating, so barrel masters control load size, current density and rotation speed with discipline.

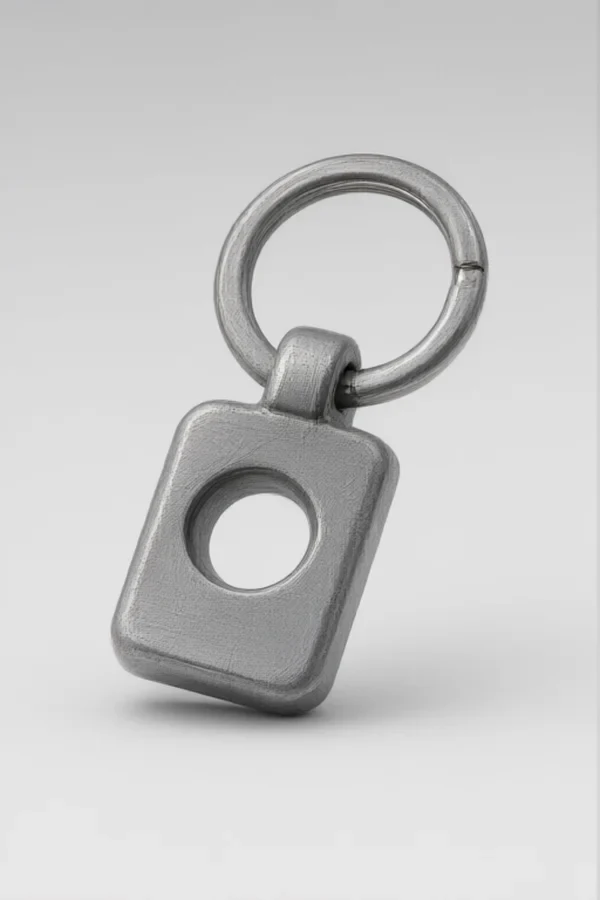

This guide focuses on Zinc Alloy Key Ring finished as Bright Nickel Plated - one product, one process, from the master's notebook: what can go wrong, how the SOP runs, what chemistry is in the tank, and how to prove the result.
10 Common Problems & Solutions - Zinc Alloy Key Ring
Field-tested by workshop masters: the ten defects plating and painting shops see most often on zinc alloy key ring, with root causes and the exact fix used on the production line.
| Problem | Root Cause | Master's Fix |
|---|---|---|
| 1. Skip plating / contact marks | Load too high, current too high at barrel make/break | Reduce load to 40-60% volume, ramp current after immersion, pre-treat thoroughly |
| 2. Burns at the barrel mouth | Current density peaks on outer parts | Reduce total current, use larger perforations, slow rotation slightly |
| 3. Poor coverage in recesses | Low throwing power or too short a cycle | Extend plating time, raise complexant level, lower current density, improve bath agitation |
| 4. Roughness and nodules | Particulate contamination in bath | Continuous 5-10 um filtration, bag anodes, carbon-filter weekly |
| 5. Pitting on plated surface | Hydrogen bubbles trapped by excess brightener | Reduce brightener, add wetting agent, verify rotation speed |
| 6. Adhesion failure after bend test | Pre-treatment fail or missing copper strike | Improve pre-treatment, verify water break, use cyanide-free copper strike on all zinc |
| 7. Dull or hazy deposit | Brightener depleted or bath temperature low | Analyze and replenish brightener, hold 55-62 C, run Hull cell |
| 8. Batch-to-batch color variation | Current / time drift or bath imbalance | Fix load, current and time per spec; log every barrel; Hull cell each shift |
| 9. Orange-peel on flash colors | Bright nickel surface too rough | Improve nickel leveling, polish substrate before plating, verify brightener balance |
| 10. Streaking from retained solution | Barrel internal rinse insufficient | Add drag-out recovery and internal rinse cycles after each bath |
Key Measures to Improve Quality
The daily disciplines that separate a 98% line from a 99.5% line:
- Run a Hull cell test every shift on copper and nickel baths.
- Measure thickness by XRF every 2 hours on 5 parts per barrel.
- Start one salt-spray sample per day per product.
- Log pH, temperature, current and rotation on every barrel.
- Use an ampere-hour meter to drive brightener dosing.
- Carbon filter each bath weekly or every 5 kAh.
- Replace anode bags monthly; inspect contacts weekly.
- First-article sign-off on the first barrel of every new lot.
SOP - Step-by-Step Operating Procedure for Zinc Alloy Key Ring
Workshop SOP with time, temperature and control points. Post this at the tank line.
Formula, Technical Parameters & Test Standards
Two-bath system: cyanide-free alkaline copper strike + bright nickel. Working volumes per 1,000 L.
Bath / Formula (working concentrations)
| Cyanide-free alkaline copper - Cu metal | 8-12 g/L (complexed copper salt) |
| Cyanide-free alkaline copper - complexing salt | 120-180 g/L |
| Copper bath pH | 9.0-10.5 |
| Copper bath temperature | 45-55 C |
| Copper current density (barrel) | 0.5-1.5 A/dm2, 8-14 V |
| Copper brightener | 3-8 mL/L, replenish 80-150 mL/kAh |
| Bright nickel - nickel sulfate NiSO4.6H2O | 240-300 g/L |
| Bright nickel - nickel chloride NiCl2.6H2O | 45-60 g/L |
Bath / Formula (continued)
| Bright nickel - boric acid | 40-50 g/L |
| Nickel pH / temperature | 4.0-4.8 / 55-62 C |
| Nickel current density (barrel) | 1-3 A/dm2 |
| Nickel brightener A (carrier) | 5-10 mL/L |
| Nickel brightener B (secondary) | 0.5-1.5 mL/L |
| Wetting agent | 0.5-1.0 mL/L |
| Flash bath (gold / gunmetal) | 0.05-0.3 um, 1-3 min, 0.3-1.0 A/dm2 |
Operating Parameters
| Barrel load | 15-30 kg standard, 50 kg absolute maximum |
| Barrel volume fill | 40-60% of barrel volume |
| Rotation speed | 4-8 rpm (slower for delicate parts) |
| Copper plating time | 20-40 min |
| Nickel plating time | 30-60 min |
| Flash / topcoat time | 1-3 min |
| Rectifier | 12 V DC, 500-1,000 A per barrel |
| Temperature control | +/-2 C on copper and nickel |
| pH check | Hourly on both baths |
| Hull cell test | Every shift on both baths |
| Ampere-hour meter | Drives brightener dosing automatically |
| Filtration | 5-10 um, 2-3 turnovers/h, continuous |
Inspection & Test Standards
| Standard | Requirement |
|---|---|
| ASTM B456 | Electrodeposited coatings of copper + nickel + chromium - service condition grades |
| ISO 4525 | Nickel and chromium coatings on zinc alloy |
| ASTM B571 | Adhesion of metallic coatings |
| ISO 9227 / ASTM B117 | Neutral salt spray 24-72 h per customer class |
| ASTM B487 | Measurement of coating thickness by cross-section |
| ASTM B568 | X-ray fluorescence thickness measurement |
Workshop Line Data for Workshop Managers
Reference capacity and utility data for planning this barrel plating line (cu + ni) around zinc alloy key ring.
| Line / Cell | Barrel Plating Line (Cu + Ni) |
| Batch / Rack Load | 22 kg / barrel |
| Cycle Time | 75-95 min / barrel |
| Daily Output (10-hour shift) | 11,000-13,000 pcs |
| Installed Power Demand | 138 kW |
| Operating Staff | 5 operators + 1 QC |
| Floor Area | 265 m2 |
| Water Consumption | 28 m3/day |
Master Tips from the Workshop Floor
- The barrel is a resistor, not a rectifier - parts at the centre of the load need time, not voltage. When coverage fails, extend time before raising current.
- Never let a barrel start current while the rectifier is hot; ramp current over 10-15 s to avoid burning the outer parts.
- The best quality barrel line looks boring: same load, same current, same time, every barrel. Variation is the enemy.
- An ampere-hour meter is the cheapest quality investment - it turns brightener dosing from guesswork into arithmetic.
