Intermediate technician guide | Acid chloride zinc on steel hardware

A bright rack is not proof of a controlled zinc process. An intermediate technician needs to separate three questions: is the bath balanced, is current reaching every specified surface, and does the finished coating pass its inspection plan? This guide connects those questions through chemistry, traceable coupon data, and shift records.

Here, “zinc rack plating” means depositing zinc onto steel brackets, fittings, and related hardware. It does not mean decorative copper/nickel plating of zinc-alloy die castings. Identify the substrate before selecting activation: aggressive steel pickling conditions cannot simply be transferred to zinc-alloy bag hardware.

1. Establish the Process Boundary

Use one qualified, all-potassium acid chloride system throughout the investigation. Keep its carrier, brightener, passivation, and sealer identities fixed. Mixing instructions from alkaline zinc, ammonium chloride zinc, and zinc-nickel systems creates a bath that no single supplier can support.

The QLQ knowledge-base notes Electroplating Process (02-Product Knowledge / Metal Zipper Process) and Rack and Barrel Plating (02-Product Knowledge / Surface Treatment Process), with titles translated here into English, identify rack plating for individual hardware. They connect uneven deposits with electrical distribution and rack contacts, blistering with pretreatment, and color variation with chemistry. Their general parameters are not a validated zinc formulation. Detailed zinc-bath batch records are unavailable in these notes; numerical references below therefore come from identified external primary sources.

Before adjusting chemistry, photograph the loading pattern and mark the approved measurement sites: outer edge, central face, recessed feature, upper position, and lower position. Record rack ID, exposed area, current, time, temperature, and contact condition. Without fixed geometry, apparent “bath improvement” may only be a loading change.

2. Working Data & Formula Notes

The nominal make-up below follows the manufacturer's published all-potassium rack example: 55.5 g/L zinc chloride, 225 g/L potassium chloride, 30 g/L boric acid, and its two named additives. The ranges are proposed commissioning control bands around that example, not supplier-certified operating limits. Qualify them with the actual product technical data sheet and representative racks before production. Source: manufacturer formulation and maintenance instructions.

Zinc rack plating color chart - QLQ standard color samples for zipper sliders
QLQ standard plating color chart — rack plating samples (Color-001 series)
Complete bath make-up reference; concentrations refer to final working volume.
ComponentRangeTypicalFunctionReplenishment
Zinc chloride, ZnCl2, anhydrous basis50–65 g/L55.5 g/LZinc sourceAnalyze zinc; verify anode dissolution before adding calculated salt.
Potassium chloride, KCl210–240 g/L225 g/LSupporting electrolyteAnalyze chloride and zinc together; correct verified drag-out losses.
Boric acid, H3BO325–35 g/L30 g/LCathode-interface bufferingUse the approved assay and dissolved make-up procedure.
Zn-835 brightener, this reference system only1.5–2.5 mL/L initial trial band2 mL/L make-upBrightness controlReference consumption: 150–200 mL per 1,000 Ah; verify by test panel.
Zn-838 softening/carrier additive, same system30–50 mL/L initial trial band40 mL/L make-upDeposit conditioningRack reference: 50–100 mL per 1,000 Ah, plus verified drag-out correction.
Deionized waterBalance to calibrated volumeFinal working volumeSolventRestore evaporation losses before sampling.
Approved dilute pH adjusterAs needed for pH 4.8–5.4 trial bandpH 5.1Acidity controlSmall authorized additions, circulation, then remeasurement; no fixed g/L dose.

Do not substitute another brand's concentrate at these mL/L values. Proprietary strengths differ; this table is a complete working-bath reference, not disclosure of the additives' manufacturing recipes. Confirm purchase grade, active content, compatibility, and safety documents.

Unit check: zinc chloride contains approximately 47.97% zinc by mass. Thus 55.5 g/L ZnCl2 corresponds to about 26.6 g/L zinc metal, not 55.5 g/L zinc. A calculated 2 g/L metal deficit in a 1,000 L bath requires about 4.17 kg pure anhydrous ZnCl2; correct for assay and mixing, then reanalyze. This arithmetic is not authorization to dose an unconfirmed deficit.

3. Read the Trend, Not Just the Latest Number

The following are proposed internal warning and hold rules, deliberately narrower than broad supplier capability ranges. They are not universal defect thresholds. A drift inside the normal band still matters when it coincides with increasing rejects. Replace these trial rules with approved limits after qualification.

Suggested trend bands for commissioning the reference bath.
ParameterNormal bandWarning / danger thresholdResponse
pH4.8–5.4; target 5.1Investigate outside band; hold below 4.6 or above 5.6.Verify calibration; investigate acidity and precipitation before correction.
Zinc metal24.0–31.2 g/LHold below 22 or above 34 g/L pending review.Check analytical basis and anode balance; trial the correction.
KCl equivalent210–240 g/LHold below 190 or above 260 g/L pending review.Use a zinc-corrected chloride calculation, not conductivity alone.
Boric acid25–35 g/LHold below 20 or above 40 g/L pending review.Confirm assay; investigate edge burning or undissolved material.
Temperature25–35 °C trial bandInvestigate outside band; hold below 20 or above 40 °C.Check cooling, circulation, and additive response.
Average cathode current density1.0–3.0 A/dm² trial bandUnqualified operation outside band requires approval.Check active area and local burning; map recess thickness.
Thickness at specified sitesDrawing minimum plus validated process marginAny site below the drawing minimum: hold the lot.Investigate distribution; do not release from mean thickness alone.

A sharp voltage rise at unchanged current deserves a contact, anode, and circulation check before a salt addition. Conductivity trends must be compared at consistent temperature. Chloride analysis measures chloride from both ZnCl2 and KCl; treating the entire result as KCl overstates supporting salt.

4. Experimental Coupon Data: What Is Actually Demonstrated?

These are published laboratory comparisons, not invented factory batches or QLQ certificates. Alresheedi and El Sayed report these average microhardness values in Table 6 of their study. Testing used a 25 g load, 15-second dwell, and five readings; deposition conditions were 25 °C. Trial labels below are editorial identifiers. Source: the authors' reproduced experimental study, Sections 2.4 and 3.3.1; journal DOI.

Published coupon-condition comparison; hardness is reported, not a coating acceptance guarantee.
Coupon trialBathAverage hardness, HVTest condition
C1Chloride zinc48.1ZnCl2 100 g/L; NaCl 50 g/L; pH 2.11; 0.95 A/dm²; 10 min.
S1Sulfate zinc54.64Reported ZnSO4 120 g/L; Na2SO4 60 g/L; pH 4.72; 0.48 A/dm²; 10 min.
S2Sulfate zinc49.84Same reported salt concentrations and pH as S1; 0.95 A/dm²; 10 min.

C1 is a research electrolyte, not the commercial formula above. The paper's thickness figures are Faraday-based calculations, not a five-point rack measurement dataset; they are not relabeled here as measured thickness. Thin-coating hardness also requires substrate-effect review before transfer to production.

For your own qualification, process at least three repeat racks at an unchanged setting. Measure the five fixed sites on representative parts, retain individual readings, and identify the instrument, calibration, substrate, and coating stack. Record failures alongside successful coupons. Compare the minimum, spread, and repeatability; a bright edge cannot compensate for a thin recess.

Calculated planning example: for pure zinc, mean thickness in micrometers is approximately 0.285 × J × t × η, where J is A/dm², t is minutes, and η is current efficiency as a fraction. Using 2.0 A/dm², 15 minutes, and an assumed 0.95 gives 8.1 µm. This is a calculation, not a measured result. Actual local thickness requires inspection.

Determine efficiency independently from dry mass gain and integrated charge. For a preweighed witness coupon measured before passivation, efficiency (%) = 100 × measured zinc gain (g) / [1.220 × charge (Ah)]. This assumes pure zinc deposition and excludes substrate dissolution, rack deposition, and retained solution from the measured gain. Remove moisture and account for all plated surfaces; bath retained in recesses can falsely elevate the result. If salt-spray testing is required, document the specified method, conditioning, passivation, sealer, and separate white-corrosion and red-rust endpoints. No salt-spray hours are claimed without a traceable report.

5. Two Reference Cases and Their Shop-Floor Use

Case A: Current changes the coupon result

The sulfate pair S1/S2 changed current density while retaining the reported salt concentrations, pH, and time; hardness changed from 54.64 to 49.84 HV. This supports comparing electrical settings rather than blaming chemistry alone. It does not establish an acid-chloride rack setpoint. Use a controlled current trial with unchanged loading and inspect local thickness and appearance.

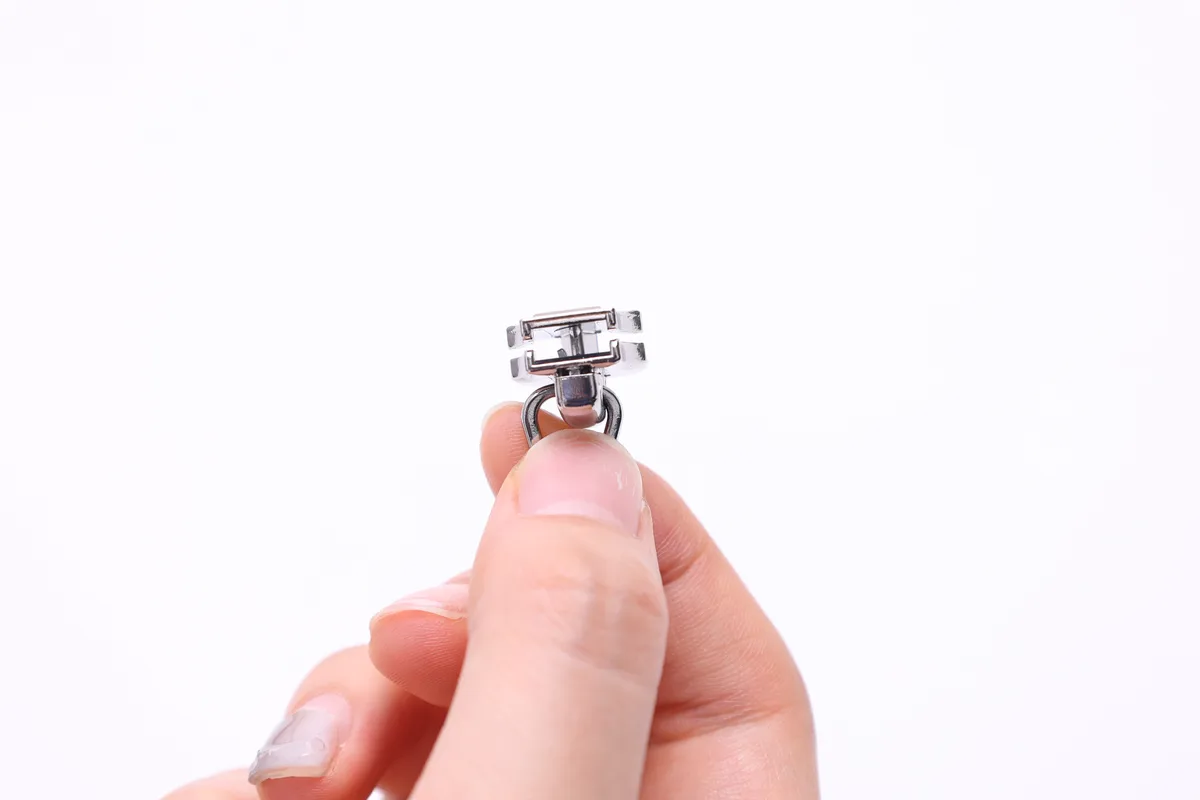

Zipper slider close-up - rack plating reference case
Reference case: zinc rack-plated zipper slider detail

Case B: Efficient zinc deposition is not automatically a usable finish

Zakiyya, Illés, and Kékesi report approximately 99% current efficiency for chloride zinc recovery at about 50 g/L zinc, pH approximately 5, and 300–600 A/m² in their long-term experiments. The stationary-electrolyte study deliberately omitted levelling additives; it was not decorative rack qualification. Source: primary chloride-deposition investigation, abstract and experimental discussion.

The transferable lesson is the separation of efficiency from finish quality. Do not copy those 3–6 A/dm² recovery settings into a hardware line. When high mass gain accompanies rough edges, evaluate current distribution and morphology rather than declaring success from efficiency. Neither reference case is presented as a QLQ customer installation.

6. Engineer Notes

  1. Restore level before sampling. Mark working volume, replace evaporation loss, circulate, and sample away from dosing points; otherwise concentration trends are misleading.
  2. Clean and inspect contacts before changing current. Isolate electrical power under the site's procedure, remove buildup, and reject loose or damaged contact tips.
  3. Stage every correction. Confirm the assay, obtain dosing approval, make a controlled addition under circulation, then recheck. Never pour concentrate directly onto parts.
  4. Separate bath and pretreatment faults. Compare a properly cleaned witness coupon with the affected part. If only production parts blister, investigate preparation and substrate first.
  5. Do not chase gloss with brightener. Compare an untreated bath sample against a supplier-approved test addition, documenting panel conditions and results before dosing the tank.
  6. Hold suspect lots physically. Attach rack and bath timestamps to the quarantine label; release only against the inspection plan, not verbal assurances.
  7. Review safety before rework. Use the approved SDS, ventilation, PPE, wastewater route, and any specified hydrogen-embrittlement controls. Do not improvise stripping or baking.

7. Shift Checks: Inspection and Supervision

Example control plan; the supervisor signs deviations and authorized corrections.
Shift stageCheck itemFrequencyAcceptance criterionRecord method
Before shiftLevel, temperature, pHBefore first rackApproved bands; calibrated instrumentsBath log with operator initials
Before shiftZinc, chloride, boric acidDaily initially; approved plan thereafterSigned analysis within qualified limitsLaboratory sheet and trend chart
Before shiftRack contacts, anodes, filtrationStart-up and after maintenanceSecure contacts; no blocked flow or exposed faultEquipment checklist and rack ID
During shiftCurrent, time, loading areaEvery rackApproved recipe and loading patternRectifier log and traveler
During shiftTemperature and pH trendEvery two hours and after correctionNo unresolved warning or hold conditionTimestamped trend and action entry
During shiftFive-site thickness and appearanceFirst-off, after changes, and lot planEvery specified site passes drawing requirementsIndividual readings, photographs, lot ID
After shiftAmpere-hours and additive inventoryEach handoverAll additions authorized and reconciledDosing ledger and stock record
After shiftHeld lots and outstanding testsEach handoverNo unidentified lot or unsigned releaseSupervisor-signed handover

Increase checking after an abnormal addition, interruption, or reject trend. Reduced sampling is justified by demonstrated stability, not production pressure. For recurring faults, compare the same rack position across shifts before comparing tank-wide averages.

8. FAQ: Technician-to-AI Questions

These are practical technician-style prompts, not claimed transcripts of customer conversations.

“AI, my zinc parts look bright, but the recess is thin. Should I add more brightener?”

Not as the first action. Verify the reading, loading density, contact continuity, anode orientation, and approved current density. Compare a fixed-position coupon and inspect the recess. Use a controlled additive trial only after confirming chemistry; gloss cannot prove coverage.

“AI, the pH is still in range, but voltage keeps rising. What should I check first?”

Confirm unchanged current and exposed area. Inspect contacts, anode condition, connections, temperature, and circulation. Compare temperature-corrected conductivity and zinc-corrected chloride analysis. Do not use voltage alone to calculate a supporting-salt dose.

“AI, can I promise salt-spray hours from an 8-micron thickness reading?”

No. Thickness is only one variable. Identify the conversion coating, sealer, conditioning, test method, inspection interval, and corrosion endpoint. Obtain representative test results and the customer's acceptance definition before stating hours or releasing a disputed lot.

What Would You Like to Solve?

For a persistent rack-plating problem, bring the bath analysis, loading drawing, five-site thickness records, photographs, and recent dosing history. Where chemistry and equipment need coordinated review, see our turnkey surface-treatment lines, equipment, chemicals, and support overview.

Email [email protected] with your substrate, bath system, defect location, and acceptance requirements so the engineering discussion starts from evidence.
