BARREL PLATING / MANAGEMENT / PROCESS CAPABILITY
Thickness Uniformity in Barrels: Statistical Distribution Study

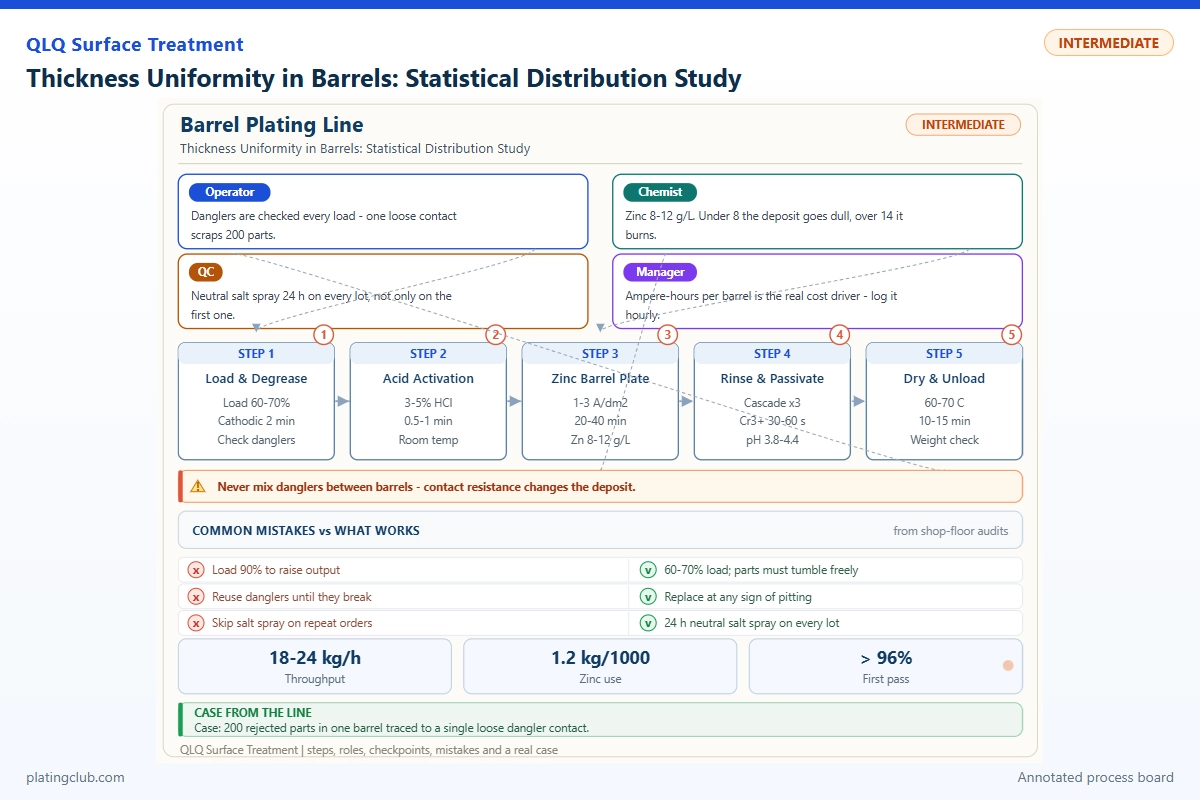

A barrel can deliver the correct average nickel thickness while repeatedly shipping underplated parts. Management therefore needs a distribution study, not another average-thickness dashboard. The objective is to separate variation between batches, between parts within a batch, and between measurement positions on one part, then assign corrective work to the right owner.
This study framework addresses small bag-hardware components, including zinc-alloy parts with an already qualified copper undercoat. It examines the subsequent nickel stage, not direct nickel deposition onto bare zinc alloy. Substrate preparation, undercoat integrity and the complete finishing stack remain separate release requirements.
Evidence boundary: QLQ knowledge-base notes establish the relevance of loading, rotation, circulation and electrical contact. They do not contain a traceable thickness-distribution dataset for this topic. The experiment table below is explicitly synthetic worked data, not a customer trial, laboratory report or demonstrated QLQ performance. Replace it with signed plant measurements before making production claims.
1. Define the characteristic before collecting numbers
Write the acceptance requirement as a thickness at a named significant surface. For this worked study, use a hypothetical nickel minimum of 8.0 micrometres at a recessed reference position. That value is an example specification, not a universal requirement for bag hardware. Obtain the actual customer drawing, coating designation and agreed inspection method before production.
For each sampled part, measure a face, an edge and the specified recess. Keep the three distributions separate. An edge reading must not compensate for an inadequate recess. Record part identity, barrel identity, discharge segment, shift, undercoat lot and thickness location. Repeated instrument readings improve measurement precision but do not create additional independent parts.
Use calibrated X-ray fluorescence where the geometry and multilayer model permit reliable measurement. Validate difficult recesses with metallographic cross-sections or another agreed method. Check curvature, spot size, substrate composition and undercoat assumptions. Conduct a measurement-system study using representative parts, operators and repeat measurements; otherwise, apparent process spread may actually be fixture or instrument spread.
2. Working Data & Formula Notes: the chemistry baseline
A plain, additive-free Watts nickel bath provides a defined reference chemistry. The three constituent ranges below come from the Nickel Institute Nickel Plating Handbook, chemistry section. The typical column selects study targets inside those ranges; it is not a proprietary QLQ recipe.
| Component | Range | Typical | Function | Replenishment |
|---|---|---|---|---|
| Nickel sulphate, NiSO4·6H2O | 240–300 g/L | 270 g/L | Main nickel-ion source | Analyse nickel; account for soluble-anode supply and drag-out before salt correction. |
| Nickel chloride, NiCl2·6H2O | 30–90 g/L | 60 g/L | Supports conductivity and anode dissolution | Analyse chloride separately; correct losses without blindly increasing total nickel. |
| Boric acid, H3BO3 | 30–45 g/L | 40 g/L | Buffers the cathode environment | Analyse, dissolve through the approved addition procedure and recheck after mixing. |
| Deionized water | Balance to final volume | Final working volume | Solvent and concentration control | Restore measured evaporation losses; distinguish evaporation from solution drag-out. |
| Brighteners and wetters | None in this reference study | 0 intentional addition | Excludes proprietary additive effects | For a commercial bright process, replace this reference with the supplier's complete approved additive schedule. |
Make-up and pH adjustment require a trained chemist, approved work instructions and current safety data sheets. Do not select acid or alkali doses from this article. An additive-free reference is not a substitute for a qualified decorative-bright process.
Salt correction, kg = concentration deficit, g/L × actual working volume, L ÷ 1,000.
For example, a confirmed 2 g/L boric-acid deficit in 1,000 L represents 2 kg before corrections for purity or retained solution. Dissolve and mix using the approved procedure, then analyse again. Never use ampere-hours alone as a substitute for bath analysis.
3. Design a study that separates the causes
Begin with ten consecutive baseline batches, sampling thirty parts per batch: ten from early discharge, ten from the middle and ten from late discharge. Randomize selection within each segment. Discharge position is a sampling stratum, not proof that a part occupied a particular barrel location during plating.
Keep part geometry, upstream preparation, chemistry, temperature and integrated charge per estimated surface area consistent. Evaluate two loading levels and two rotation settings in a randomized factorial trial, with at least three independent batches per combination. These are design choices; actual load and speed settings require equipment and product approval.
Log current versus time, interruptions, estimated total part area and barrel motion. Treat the batch as the experimental unit for loading changes. Thirty parts from one barrel are thirty subsamples, not thirty independent loading trials. Block by shift or undercoat lot where necessary; otherwise, a shift change can masquerade as a loading effect.
| Batch / comparison | Test condition | Parts | Mean thickness, µm | Sample SD, µm | Observed minimum, µm | Below 8.0 µm |
|---|---|---|---|---|---|---|
| A / baseline | Higher loading; reference rotation; fixed charge/area; matched bath | 30 | 10.4 | 1.8 | 6.9 | 3/30 |
| B / loading trial | Reduced loading; reference rotation; same charge/area and measurement method | 30 | 10.6 | 1.2 | 8.1 | 0/30 |
| C / rotation trial | Higher loading; revised qualified rotation; same charge/area | 30 | 10.5 | 1.4 | 7.6 | 1/30 |
| D / combined trial | Reduced loading; revised qualified rotation; same charge/area | 30 | 10.5 | 0.9 | 8.5 | 0/30 |
The illustrative comparison narrows spread without materially increasing the mean. It suggests what a useful intervention could look like; it does not establish causality. Actual analysis needs replicated batches and retained individual readings. Salt-spray resistance and hardness are not supplied because no authenticated test results exist; neither can be inferred from these thickness summaries.
4. Read the lower tail, not just the histogram centre
Calculate batch means, sample standard deviations, defect counts and coefficient of variation. Plot individual recess readings by batch, alongside separate plots for face and edge. Use an empirical cumulative distribution to see how much of the population approaches the lower limit. A second peak may indicate nesting, mixed geometry or interrupted contact rather than random noise.
CV = 100 × s / mean. One-sided capability estimate Cpl = (mean − LSL) / (3s), only for a stable process with an appropriate distribution and within-process variation estimate.
Using each illustrative batch SD solely for a screening calculation gives A approximately 0.44 and D approximately 0.93. CV falls from 17.3% to 8.6%. D improves, but it does not meet an example capability target of 1.33. A stable normally distributed process centred at 10.5 µm would need s no greater than approximately 0.63 µm to achieve that target against an 8.0 µm lower limit.
Do not label these four single-batch estimates as established plant capability. Analyse variance components or a mixed-effects model for batch, part and position when sufficient data exist. Inspect residuals before using a normal-tail calculation. For skewed distributions, use a justified distribution model or a suitable nonparametric tolerance bound.
Zero failures among thirty independent representative observations still gives an approximate 95% upper defect-probability bound of 3/30, or 10%. Clustered observations from one batch offer less reassurance about future batches. Release decisions therefore need the agreed sampling plan, measurement uncertainty and evidence of process stability, not a green average alone.
5. Normal fluctuation bands versus action thresholds
The following are proposed study controls, not universal damage thresholds. Validate them against the chemistry supplier, equipment limits and the approved part family. The handbook identifies approximately 0.3–1.0 A/dm² as a desirable range for many barrel nickel operations; do not transfer rack-current settings directly to barrels.
| Parameter | Proposed normal band | Danger / action threshold | Required response |
|---|---|---|---|
| Bulk pH | 3.8–4.2 study target | Below 3.5 or above 4.5: hold pending review | Verify calibrated reading; review deposits and approve correction. |
| Bath temperature | 50–55 °C study target | Below 40 or above 60 °C: outside reference envelope | Check independent probe, heater and circulation. |
| Nominal current density | 0.5–0.8 A/dm² study target | Outside 0.3–1.0 A/dm²: engineering review | Recheck area estimate, contacts and actual current trace. |
| Load mass | Qualified target ±3% | More than ±5%, or visible nesting: hold | Reweigh; verify count, shape mix and occupied volume. |
| Rotation speed | Qualified target ±5% | More than ±10%, or any stall: investigate | Measure loaded motion; inspect drive before restart. |
| Integrated charge/area | Qualified target ±3% | More than ±5%: segregate batch | Review logger, interruptions and batch-area calculation. |
| Recess thickness | Above approved minimum with agreed guard band | Any verified result below specification | Contain affected stock; investigate before release. |
Control limits calculated from stable historical data are different from these operating limits. A batch can remain within recipe limits yet trigger a statistical signal. Conversely, an unstable process must not generate its own permissive acceptance limits.
6. Two implementation scenarios for management review
Scenario A: nested zinc-alloy pullers
This is a proposed troubleshooting scenario, not a reported customer case. Face thickness passes while recessed locations show a second low-thickness population. Separate nesting-prone shapes, verify undercoat coverage, then compare approved load volumes at constant charge per area. Have quality inspect nesting marks and recess cross-sections. Reject an apparent improvement caused merely by removing difficult parts from the sample.
Scenario B: contact deterioration across shifts
This is also a proposed diagnostic scenario. Similar chemistry readings accompany intermittent current dips and growing between-batch variation. Maintenance checks contact surfaces, cable connections and loaded movement under an approved isolation procedure. Compare pre- and post-maintenance current traces across replicated batches. The distinguishing evidence is reduced interruption and batch variation, not simply longer plating time.
For either scenario, assign one accountable owner and a verification date. Operations owns recipe execution, maintenance owns hardware integrity, the laboratory owns chemistry and measurement validity, and quality owns containment and release. Management resolves competing incentives between hourly output and conforming output.
7. Engineer Notes
- Weigh every trial load and record occupied volume; equal mass does not guarantee equal tumbling behaviour.
- Verify actual loaded rotation with an approved non-contact method rather than trusting the drive display.
- Isolate equipment before inspecting danglers, contacts or connections; never reach into an energized barrel.
- Store the complete current-time trace and integrate delivered charge, including ramps and interruptions.
- Use a photographed measurement-location map and fixed fixture orientation for every sampled part.
- Retain the lowest-thickness parts for cross-section confirmation and upstream-process inspection.
- Change only documented trial factors; freeze additive additions and maintenance changes or record them as confounders.
8. Shift Checks
| Shift stage | Check item | Frequency | Acceptance criterion | Record |
|---|---|---|---|---|
| Before shift | Instrument reference, pH and temperature | Each shift; after suspected drift | Reference within approved tolerance; bath within signed recipe | Calibration log and bath sheet |
| Before shift | Barrel, contacts, perforations and drive | Each shift under safe procedure | No damage, blockage or unresolved maintenance defect | Equipment checklist |
| During shift | Mass, count, geometry and charge/area | Every batch | Qualified loading and electrical bands | Batch traveller and current trace |
| During shift | Thickness at designated positions | First batch, then approved sampling frequency | Customer specification and agreed decision rule | Individual readings and disposition |
| During shift | Bath constituents and additions | Approved laboratory schedule; after correction | Qualified constituent limits; additions reconciled | Analysis and dosing log |
| After shift | Trend signals, containment and handover | Each shift | No unassigned deviation or untraceable held batch | Signed handover and action register |
9. FAQ: questions a technical manager might ask AI
“AI, our average thickness is above specification. Why are customers still finding thin parts?”
The average hides the lower tail and location-specific failures. Separate recess, edge and face readings, check measurement bias and review individual values by batch. Contain confirmed failures; do not raise current until you understand contact, nesting and area estimates.
“AI, can I prove the new loading recipe works with one batch and thirty measurements?”
No. That batch describes within-batch behaviour, not reproducibility across production. Run independent replicated batches, randomize the comparison and include representative shifts. Keep repeated readings distinct from independent parts and independent process trials.
“AI, should I increase plating time or reduce variation first?”
First establish whether the mean is low, the spread is excessive, or both. More time may increase metal consumption without curing interruptions or shielding. Compare conforming kilograms per hour and nickel consumption per accepted part alongside lower-tail thickness.
10. What Would You Like to Solve?
Send your part geometry, coating stack, minimum-thickness locations, batch loading, bath analysis and anonymized individual readings to [email protected]. Include the current trace and measurement method so the engineering discussion can distinguish distribution problems from chemistry or instrument problems. Review the integrated equipment, chemistry and process-support scope when the issue crosses several stations.
Source traceability: Local QLQ Obsidian Vault notes consulted: “Rack and Barrel Plating” and “Electroplating Defect Analysis” in section 02, surface-treatment process folder; “Rack and Barrel Plating Equipment” in section 03, equipment folder. Original filenames are retained in the source repository; English labels are used here. Quantitative base chemistry and barrel-current guidance are attributed to the Nickel Institute handbook linked above. Study targets, scenarios and synthetic results are explicitly editorial examples requiring plant validation.
