Barrel Plating | Intermediate Technician | Changeover Workbook

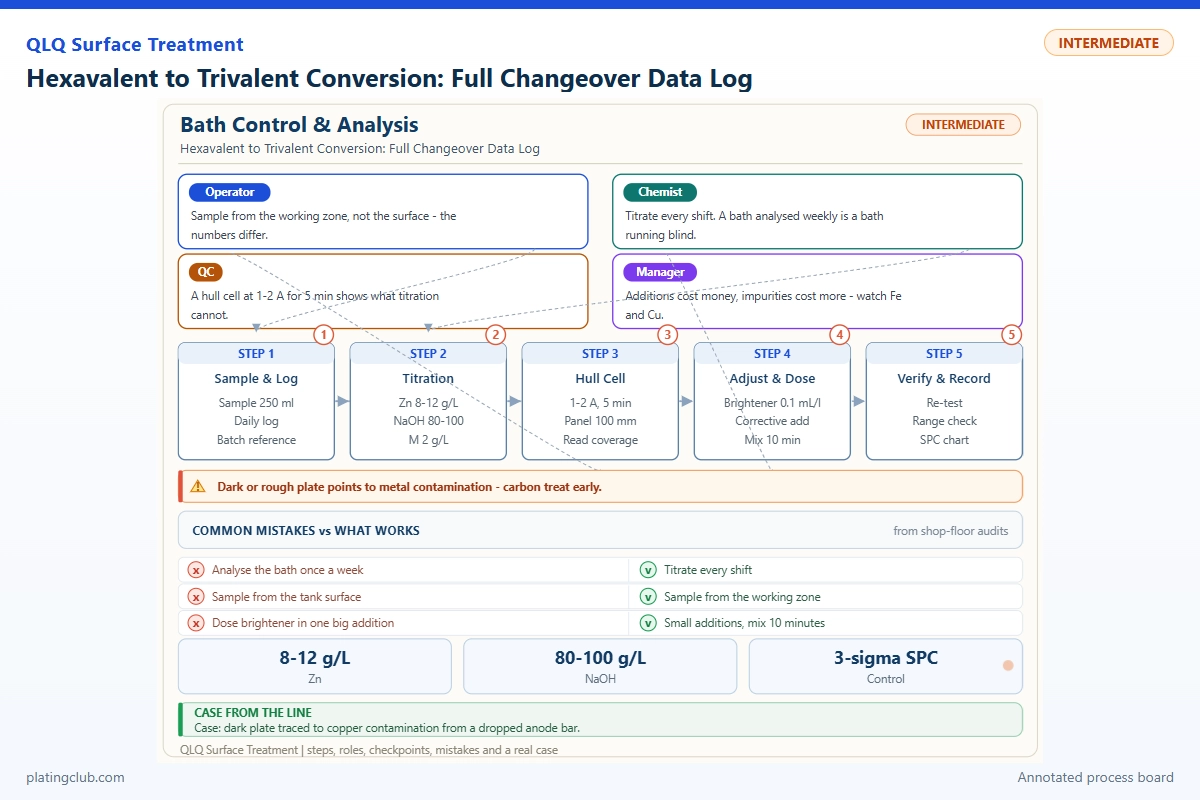

Hexavalent to Trivalent Conversion: Full Changeover Data Log
A successful conversion is demonstrated by traceable lots, stable operating conditions and repeatable corrosion performance, not by changing the chemical label on a tank. This workbook gives technicians a practical structure for qualifying trivalent chromium passivation after barrel zinc plating.
Scope: zinc-electroplated steel hardware receiving a chemical conversion coating. The passivation stage is an immersion treatment without plating current. This is not a recipe for replacing decorative chromium over nickel, hard chromium, or the copper-nickel finish on zinc-alloy castings. Confirm the substrate and coating stack before using any changeover instructions.
Evidence boundary: no verified QLQ hexavalent-to-trivalent production trial dataset was available in the consulted knowledge-base notes. The experimental table below therefore uses attributed published specimen results. Production fields remain unfilled until measured; suggested limits are commissioning proposals, not supplier specifications or guaranteed performance.
1. Define the Baseline Before Emptying the Tank
Freeze the part number, steel grade, zinc plating process, minimum local thickness, barrel loading, activation, rinsing, sealer and drying route. Photograph the approved appearance under fixed lighting. Record corrosion acceptance criteria separately for white corrosion products and red substrate corrosion. Do not use a passing red-rust result to conceal an unacceptable white-rust result.
Assign identifiers to the old-process baseline, fresh-bath trial and aged-bath trial. Retain representative finished parts from each. Log chemical batch numbers, operator, tank identification, calibration status and laboratory report references. Record deviations immediately rather than reconstructing them after a customer complaint.
For intermediate technicians, the immediate responsibility is controlling the passivation, rinsing and handling problem domains. Escalate changes to the underlying zinc electrolyte, steel heat treatment or customer coating specification to the responsible process engineer. A passivator cannot reliably compensate for thin zinc, missed contact areas or unsuitable pretreatment.
2. Working Data & Formula Notes
The table lists the complete disclosed ingredient set for Comparative Example 5 in EP3456865A1. Its typical values are published make-up quantities, including the supplied silica dispersion rather than dry silica. The ranges are proposed ±5% weighing tolerances for a supervised replication only; they are not demonstrated operating windows.
| Component | Range | Typical | Function | Replenishment |
|---|---|---|---|---|
| 40% chromium nitrate solution | 22.7–25.1 g/L | 23.9 g/L | Cr(III) source | Measured chromium deficit |
| Cobalt nitrate hexahydrate | 4.75–5.25 g/L | 5.0 g/L | Co(II) constituent | Separate cobalt analysis |
| Oxalic acid dihydrate | 1.81–2.00 g/L | 1.9 g/L | Complexant | Validated ligand analysis |
| Malonic acid | 1.52–1.68 g/L | 1.6 g/L | Complexant | Validated ligand analysis |
| Spherical colloidal silica, 10–15 nm | 25.2–27.8 g/L | 26.5 g/L | Film modifier | Supplier-specific assay |
| Sodium hydroxide | As required | Adjust to pH 2.0 | pH adjustment | Controlled diluted addition |
| Water | Final-volume balance | To 1 L | Carrier | Separate evaporation/drag-out |
Important: this is a research comparator, not a recommended commercial finish: its published appearance was unsatisfactory. Use the selected supplier's qualified chemistry for production. Hydrate form, stock assay and silica solids content must match; substituting an equal mass of another grade does not reproduce the formulation.
Replenishment is not simply repeating the make-up ratio. Evaporation removes water; drag-out removes dissolved constituents; incoming work introduces contamination. For an analytically measured constituent, calculate addition mass = bath volume × concentration deficit ÷ active mass fraction. With volume in litres and deficit in grams per litre, the answer is grams of replenisher. This calculation assumes no simultaneous reaction or loss and requires a representative, mixed sample.
For example, a hypothetical 1,000 L bath needing 0.20 g/L of an assayed constituent requires 500 g of a replenisher containing 40% of that same constituent by mass. Do not treat a stock's “40% chromium nitrate” label as 40% elemental chromium. Document the analytical basis before calculating any addition.
3. Published Specimen Comparison and Production Log
These two published comparators illustrate why appearance and corrosion must both be measured. They do not constitute a hexavalent control or QLQ customer results. The underlying zinc thickness is reported; conversion-film thickness and hardness are not. Never describe zinc thickness as passivation thickness.
| Specimen / batch | Zinc thickness | Conversion-film thickness / hardness | White rust | Red rust | Test condition |
|---|---|---|---|---|---|
| Published comparator 5 | 9–13 µm | Not reported | 192 h | 384 h | Acid-zinc steel sheet; pH 2.0; 40°C; 30 s; JIS Z-2371; 24 h inspection intervals |
| Published comparator 6 | 9–13 µm | Not reported | 168 h | 288 h | Acid-zinc steel sheet; pH 3.5; 30°C; 40 s; JIS Z-2371; 24 h inspection intervals |
| Plant baseline: Cr(VI) | Measure local minimum | Measure if specified | Pending | Pending | Approved legacy route; attach laboratory report |
| Plant trial: fresh Cr(III) | Measure local minimum | Measure if specified | Pending | Pending | Same part, zinc route and agreed corrosion method |
| Plant trial: aged Cr(III) | Measure local minimum | Measure if specified | Pending | Pending | Log cumulative throughput, bath analysis and handling |
Published values: EP3456865A1, Comparative Examples 5–6 and Table 7. Both had poor uniformity and lacked gloss. Their formulations also differ; this is not a single-variable pH experiment.
For plant qualification, collect parts from at least three independent lots, including difficult recesses and nesting-prone geometries. Agree sample counts and failure definitions before testing. Identify every specimen and preserve untested retains. Add photographs, instrument readings and the first failing inspection interval to the log.
A suspended flat coupon can help compare chemistry but does not reproduce barrel collisions, drainage or nested parts. Include actual production hardware. If microhardness is requested, agree a method appropriate to the layer thickness; an indentation dominated by the substrate cannot establish conversion-film hardness.
4. Trend Bands and Stop-Work Thresholds
The following are proposed replication controls around comparator 5 plus practical pilot-line housekeeping limits. They are not universal failure thresholds. Replace them with approved supplier limits and qualification evidence before production release. Crossing a stop threshold means investigate and quarantine, not assume a particular defect must occur.
| Parameter | Normal fluctuation band | Danger / hold threshold | Action and record |
|---|---|---|---|
| Passivation pH | 1.95–2.05 | Below 1.90 or above 2.10 | Verify electrode; hold affected lots; record correction |
| Bath temperature | 39–41°C | Below 38°C or above 42°C | Check independent probe and heater control |
| Effective immersion | 29–31 s | Below 28 s or above 32 s | Check actual wetting and lift sequence |
| Cr concentration versus approved target | 95–105% | Below 90% or above 110% | Repeat analysis; calculate controlled addition |
| Final-rinse conductivity | At or below 50 µS/cm | Above 100 µS/cm | Provisional rinse limit; inspect feed and drag-in |
| Load mass versus qualified trial | 95–105% | Below 90% or above 110% | Requalify changed loading and nesting behaviour |
Plot readings in processing order with additions and rinse changes marked. A slowly rising trend may deserve intervention before a limit is crossed. Do not “chase” pH by alternating acid and alkali additions. Verify the measurement first, make an approved correction, mix adequately and retest.
Dissolved zinc, iron and Cr(VI) carryover require additional supplier-specific limits and validated analysis. Limits are unavailable here and need confirmation. Never substitute total chromium measurement for chromium oxidation-state testing. A clean-looking tank or a satisfactory pH reading does not demonstrate absence of hexavalent contamination.
5. Changeover Sequence and Two Diagnostic Scenarios
Isolation: stop processing, identify retained legacy stock and segregate the old chemistry and rinses. Use an approved drain-and-clean procedure covering tanks, pumps, filters, pipe dead legs, transfer baskets and shared tools. Route residues through the existing authorized waste-management system; do not discharge them merely because the replacement chemistry is trivalent.
Verification: document cleaning, test relevant rinse or surface samples with a validated Cr(VI) method and record its reporting limit. “Not detected” must always carry a method and detection limit. Do not reduce the old bath in place and call it a qualified replacement formulation.
Commissioning: make up the approved product under its instructions, establish analytical baselines and process segregated trials. Keep zinc thickness and downstream treatment unchanged during the first comparison. Then investigate load sensitivity and aged-bath behaviour without changing several variables together.
Scenario A: acceptable coupons, stained barrel parts. This is a diagnostic exercise, not a reported customer case. Separate nested parts, inspect trapped liquor and compare drainage between geometries. Run matched trial loads with controlled handling while retaining the same chemistry. Record stain locations and final-rinse readings. Improvement only on flat coupons does not release the hardware lot.
Scenario B: fresh-bath success, later corrosion decline. This is also a diagnostic exercise. Check analytical concentration, contamination, zinc thickness and sealer control before increasing dwell. Compare retained early parts with later parts using identical conditioning and inspection. Escalate unexplained contamination to the supplier; do not apply unvalidated peroxide, carbon treatment or waste reduction chemistry to the working bath.
6. Engineer Notes: Seven Actions Worth Recording
- Calibrate the pH meter using appropriate traceable buffers and check the probe in a representative bath sample. Record sample temperature and calibration status.
- Time actual immersion with a stopwatch during commissioning. Include delayed wetting, barrel position and programmed lift differences in the investigation.
- Label dedicated sampling tools and transfer equipment. Inspect shared return paths before accepting a cleaning certificate.
- Measure zinc at specified functional locations, including recesses. Save the measurement map so later operators use the same positions.
- Record replenisher identity, mass, active basis, bath volume, mixing time and before/after analysis. Require authorization for additions outside the approved procedure.
- Measure actual part temperature during drying. An oven setpoint alone cannot prove the load received the qualified thermal cycle.
- Quarantine the affected time window after a limit excursion. Link the last acceptable reading, correction and first verified acceptable load to identifiable lots.
7. Shift Checks
| Shift stage | Check item | Frequency | Acceptance standard | Record |
|---|---|---|---|---|
| Before shift | Tank identity, chemistry and cleaning release | Each startup | Approved route; no unauthorized shared returns | Signed startup checklist |
| Before shift | pH, temperature and bath analysis | Before first load | Approved control sheet; pilot bands only when authorized | Readings, calibration and sample ID |
| During shift | Load, dwell and appearance | Every load | Qualified loading; approved time; no stain or haze | Lot-linked process log |
| During shift | pH, temperature and rinse conductivity | Hourly; after additions | Within authorized operating bands | Trend chart and corrective action |
| During shift | Zinc thickness and retained specimens | Each qualification lot | Customer minimum at specified locations | Thickness map and retain label |
| After shift | Inventory, additions and deviations | Each handover | Complete reconciliation; held lots identified | Handover signature and hold list |
| After shift | Corrosion samples and laboratory follow-up | Daily during qualification | Traceable specimens; agreed test schedule | Report ID and pending decisions |
8. Technician-to-AI FAQ
“AI, can I keep the old tank and just add trivalent concentrate after draining?”
Not without documented cleaning and contamination verification. Inspect all wetted equipment and shared rinses, then obtain process-engineer release. Follow the replacement supplier's make-up procedure. A drained tank can still carry legacy residues through filters, plumbing and transfer tools.
“AI, the parts look good, so why are we holding the first batches?”
Appearance does not establish corrosion resistance, thickness or absence of Cr(VI). Release needs the agreed test results and traceable process records. Keep qualification lots segregated until the responsible quality authority has accepted the evidence.
“AI, white rust increased after two shifts. Should I extend immersion time?”
First verify zinc thickness, bath analysis, contamination, rinsing, loading and drying. Longer immersion changes the process and may conceal the real cause. Use a controlled comparison only after the engineer approves it; record both successful and failed specimens.
9. What Would You Like to Solve?
Send the substrate, coating stack, supplier product name, barrel loading, thickness map, trend log and corrosion report to [email protected]. State whether the immediate problem is carryover, uneven appearance, white corrosion or production repeatability. For coordinated equipment, chemistry and process support, see turnkey surface-treatment lines and engineering support.
Local source context: the QLQ knowledge-base note Zinc Alloy Electroplating Defect Analysis and Treatment Solutions, in the Zinc Alloy Electroplating folder of the Surface Treatment Process collection, identifies hexavalent chromium contamination as a plating-quality concern. Its casting and nickel-treatment instructions are not transferred to this steel-zinc passivation route. The local TARGET_CUSTOMERS.md informed the focus on finishing-shop technicians. No QLQ customer trial outcomes or compliance certificates are claimed.
Release rule: production approval belongs to the responsible process and quality authorities after supplier-specific limits and customer acceptance criteria are confirmed. Trivalent chemistry alone is not evidence that the finished article meets every applicable requirement.
