BARREL PLATING / INTERMEDIATE TECHNICIAN FIELD GUIDE
Barrel Loading Ratios: The Weight-to-Volume Data Model

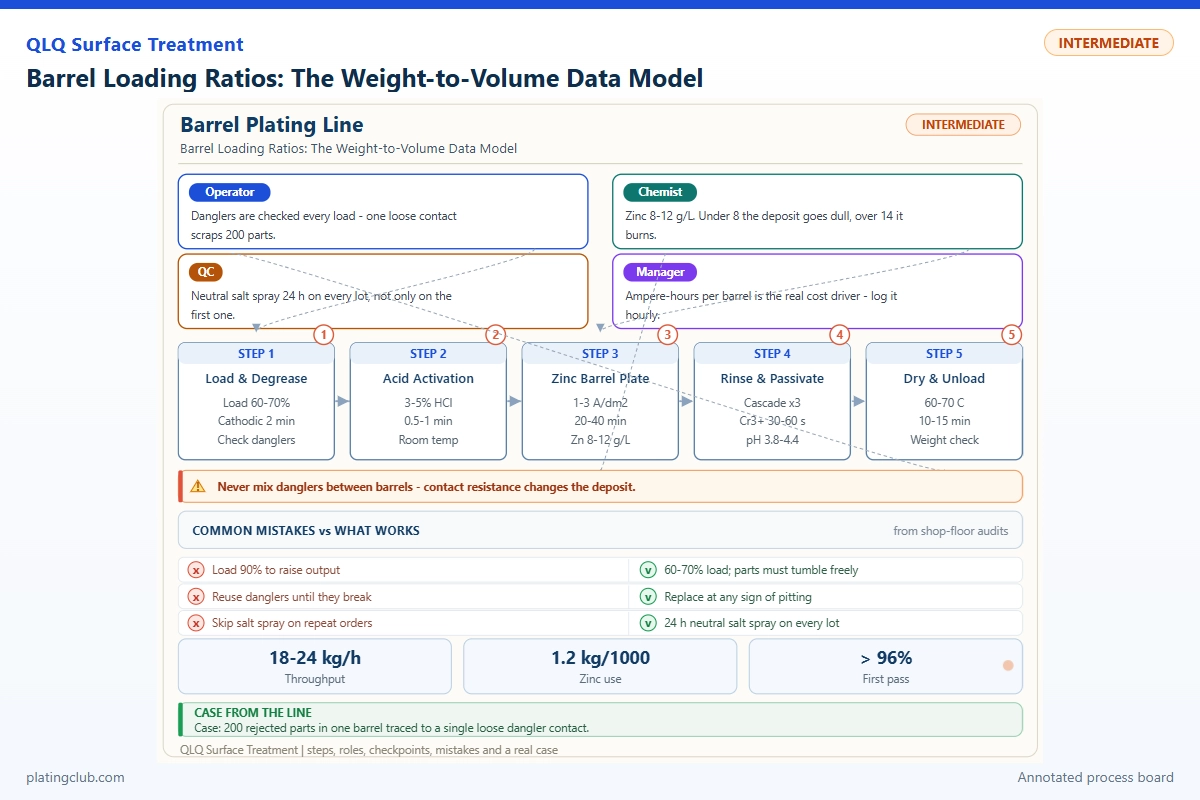

A kilogram limit protects the machine. A volume limit preserves tumbling. A surface-area limit protects the electrical process. Reliable loading requires all three, not a single number written beside the weighing scale.
Model inputs: usable barrel volume, loose bulk density, wetted part area, current capacity and validated contact behaviour.
Why the same weight can produce different plating results
An intermediate technician often inherits a rule such as “load twenty kilograms.” That rule becomes unreliable when a thick buckle is replaced by a thin slider, when castings develop a different geometry, or when nested components prevent solution exchange. Identical weights can occupy different volumes and present very different surface areas.
The QLQ knowledge base identifies loading, rotation and solution circulation as linked controls for small hardware. Its general barrel guidance gives 30–50% volumetric loading, but this is a starting envelope, not approval for every part family. The Nickel Institute independently advises keeping the work below or at half the barrel volume while respecting the manufacturer's weight rating and considering total surface area. Source: Nickel Plating Handbook, barrel-loading section.
This guide uses a dull Watts-type nickel step on already qualified, copper-undercoated zinc-alloy bag hardware. It is not a direct-nickel recipe for bare zinc alloy. Pretreatment, copper coverage and adhesion must already pass the approved process specification.
Working Data & Formula Notes
Measure loose bulk density rather than using the alloy's solid density. Tare a dry graduated container, pour parts without tapping or compressing, level the surface, and divide net mass by occupied volume. Repeat three times using the same pouring method. For this proposed measurement method, investigate a spread above 5% before accepting the average.
Bulk density: ρb = msample / Vloose, in kg/L.
Fill fraction: f = mload / (ρb × Vbarrel).
Total wetted area: A = mload × as, where as is dm2/kg.
Area-based current: I = j × A, where j is A/dm2.
Permitted mass: mmax = minimum of (ρbVbarrelfmax), mechanical mass rating and (Iqualified/jas).
Use the actual internal working volume, excluding permanent obstructions. Obtain surface area from a validated drawing or representative measurement, including holes and internal surfaces that receive electrolyte. Do not substitute projected face area. Conductive ballast, if qualified, contributes area and mass too.
Calculated example: a 60 L barrel, bulk density 1.20 kg/L and target fill 0.35 give 25.2 kg. At 6.0 dm2/kg, the load area is 151.2 dm2. A trial setting of 0.60 A/dm2 requires 90.7 A. If the qualified contact system is limited to 80 A, electrical capacity reduces the mass limit to 22.2 kg, even when the drive could carry more.
The Nickel Institute gives approximately 0.3–1.0 A/dm2 as a desirable range for most barrel nickel work. This differs from rack-nickel practice. Average area-based current also conceals intermittent contact: some pieces carry high instantaneous current while others are temporarily disconnected. Source: Nickel Plating Handbook, barrel-loading section.
A complete reference bath, not an unqualified production change
The following is a non-brightened Watts reference electrolyte. Published industrial ranges are checked against the European Commission's surface-treatment reference document. Typical values below are selected development targets, not a QLQ proprietary formula. Confirm reagent hydration and supplier analysis before weighing. Source: Surface Treatment of Metals and Plastics BREF, section 2.5.2.1.
| Component | Range | Typical | Function | Replenishment |
|---|---|---|---|---|
| Nickel sulfate hexahydrate, NiSO4·6H2O | 240–375 g/L | 270 g/L | Main nickel-ion source; insufficient metal restricts deposition capacity. | Analyse nickel and reconcile soluble-anode input; correct only the confirmed deficit. |
| Nickel chloride hexahydrate, NiCl2·6H2O | 35–60 g/L | 45 g/L | Supplies chloride for anode behaviour and contributes nickel. | Analyse chloride; include the added nickel in the total-metal balance. |
| Boric acid, H3BO3 | 30–45 g/L | 40 g/L | Helps control conditions near the cathode surface. | Titrate; dissolve corrections by the approved method and recheck after mixing. |
| Deionized water | Balance to final volume | 1 L final volume | Solvent; uncontrolled evaporation changes every concentration. | Restore the marked operating level before interpreting chemical analysis. |
| Approved pH correction reagent | As required by titration | pH 4.0 development target | Maintains the selected operating pH. | Use diluted, approved corrections under agitation; never dose from appearance alone. |
| Brightener, carrier and wetting package | None in this dull reference formulation | 0 added | A commercial bright process is a separate qualified chemistry. | For production additives, use its supplier's analysis and consumption instructions, not this table. |
At 1,000 L, raising boric acid from 36 to 40 g/L requires 4.0 kg of pure material before purity correction. Nickel is deposited at approximately 1.095 g/Ah at 100% cathode efficiency; an assumed 95% gives 1.040 g/Ah. Soluble anodes replenish metal, so this deposition calculation is not automatically a salt-addition instruction.
Only trained personnel should prepare or adjust the bath under its SDS and site procedure. Verify ventilation, chemical-resistant protection and wastewater controls. Do not introduce nickel-bearing rinses into uncontrolled drains.
Controlled loading experiment: separate prediction from measurement
Evidence status: no measured batch dataset was supplied or located in the relevant QLQ notes. This is a calculated experimental worksheet, not a completed factory trial. Thickness values are predictions; XRF and corrosion results remain pending. Do not present them as customer evidence.
Use one hardware lot, one pretreatment route and unchanged copper undercoat. Randomize run order and repeat each condition three times. Hold rotation at a mechanically qualified setting, record actual speed, and keep nickel time at 45 minutes. Compare twenty randomly selected actual parts per run at three defined locations. Rack witness coupons can monitor chemistry but cannot represent barrel-contact behaviour.
| Trial batch | Fill / mass | Test condition | Area / current density | Predicted mean nickel thickness | Measured thickness / corrosion |
|---|---|---|---|---|---|
| A: lower-fill control | 30% / 21.6 kg | 90 A, 45 min; pH 4.0; 50 °C | 129.6 dm2 / 0.694 A/dm2 | 10.13 µm | Pending XRF; corrosion pending approved finished-stack test |
| B: middle fill | 40% / 28.8 kg | 90 A, 45 min; pH 4.0; 50 °C | 172.8 dm2 / 0.521 A/dm2 | 7.60 µm | Pending identical measurements |
| C: upper-fill challenge | 50% / 36.0 kg | 90 A, 45 min; pH 4.0; 50 °C | 216.0 dm2 / 0.417 A/dm2 | 6.08 µm | Pending identical measurements |
| D: area-normalized comparison | 40% / 28.8 kg | 120 A, 45 min; pH 4.0; 50 °C; only if electrically qualified | 172.8 dm2 / 0.694 A/dm2 | 10.13 µm | Pending; compare variation against A, not just mean |
Predictions use nickel density 8.90 g/cm3 and assumed efficiency 0.95: thickness in micrometres = 12.30 × efficiency × current × hours / area. The model assumes uniform deposition. It cannot predict nested-part bare spots, contact loss or the minimum local thickness.
Report mean, standard deviation, lowest reading, location and rejected-piece count. For salt-spray testing, specify the approved method, exposure duration, complete coating stack and failure criterion before starting. No universal “hours passed” follows from a calculated nickel mean. Hardness is likewise not a proxy for loading uniformity.
Normal fluctuation bands versus action thresholds
These are proposed development controls for the worked example, not universal defect boundaries. Qualify them against the actual bath and product specification. A value outside the normal band triggers investigation; the danger threshold stops the trial or holds the affected batch.
| Parameter | Normal band | Danger / hold threshold | Interpretation and action |
|---|---|---|---|
| Loose volumetric fill | 30–40% | >50%, or >qualified part-family maximum | Unload to the approved limit; look for nesting and restricted turnover. |
| Bulk-density repeatability | Within 5% of approved value | >10% deviation | Re-measure; quarantine mixed geometries before recalculating mass. |
| Average nickel current density | 0.50–0.70 A/dm2 | <0.30 or >1.00 A/dm2 in this trial | Check area and current logs; investigate low build or localized burning. |
| Bath pH | 3.8–4.2 | <3.5 or >4.5 | Verify meter, sample temperature and analysis before correction. |
| Bath temperature | 48–52 °C | <45 or >55 °C | Check probe and circulation; do not compensate by increasing current. |
| Barrel speed | Qualified baseline ±10% | >20% deviation, stall or abnormal impact | Check drive and load motion; never copy another barrel's rpm blindly. |
| Voltage at unchanged current | Within 10% of clean-contact baseline | >20% rise or repeated spikes | Inspect contacts and perforations under isolation; distinguish contact loss from bath changes. |
| Local nickel thickness | Above drawing minimum with established process margin | Any sampled location below specified minimum | Hold batch; do not release using the average alone. |
Plot fill, specific area, voltage and minimum thickness together. A gradual voltage rise at constant geometry points away from a simple weight error. A thickness drop immediately after changing geometry makes area recalculation the first check.
Two implementation scenarios
Scenario 1: lightweight hollow sliders. This is an illustrative calculation, not a reported customer case. At 0.80 kg/L, a 24 kg load occupies 30 L: 50% of the example barrel. At 1.20 kg/L it would occupy only 20 L: 33.3%. Reduce mass to 19.2 kg to trial 40% fill, then recalculate surface area before setting current. Simply retaining the old amperage may overdrive the smaller load.
Scenario 2: thin decorative hardware. This is also illustrative. A 20 kg load at 5 dm2/kg presents 100 dm2; 60 A gives 0.60 A/dm2. A replacement at 9 dm2/kg presents 180 dm2, dropping the same current to 0.333 A/dm2. If 108 A exceeds qualified contact capacity, split the load rather than forcing current through an unsuitable contact system.
These scenarios are reusable diagnostic patterns. Neither authorizes a production change without adhesion, appearance and local-thickness confirmation.
Engineer Notes
- Label each part-family loading card with geometry revision, bulk density, specific area, barrel ID and approval date.
- Mark the qualified fill reference; verify volume during development instead of accepting kilograms as a substitute.
- Observe tumbling only through approved guarding or inspection arrangements. Isolate the drive and rectifier before opening or cleaning.
- Record amperage and voltage together after stabilization and during the cycle; retain excursions, not just averages.
- Remove blocked perforations and inspect dangler insulation, contact faces and fasteners before blaming brightener balance.
- Sample actual parts after complete unloading; identify recess and edge readings separately and preserve failed pieces.
- Change one variable at a time, except deliberately area-normalized trials; record why current changed and who approved it.
Shift Checks
| Shift stage | Check item | Frequency | Acceptance standard | Record |
|---|---|---|---|---|
| Before shift | Part identity, scale and loading card | Startup and geometry change | Correct revision; verified scale; approved density and area | SKU, lot, scale check, card revision |
| Before shift | Contacts, barrel, bath level, pH and temperature | Each barrel and tank at startup | Clean, intact hardware; example bands or approved production limits | Barrel ID, readings, inspection signature |
| During shift | Mass, calculated fill and current | Every load | Below all three qualified limits | kg, litres, fill, dm2, amperes |
| During shift | Voltage, rotation and temperature trends | Continuous logging where available; otherwise every 15 minutes | No threshold excursion, stall or abnormal impact | Timestamped trend and corrective action |
| During shift | Appearance and local thickness | Each trial load; approved sampling thereafter | Drawing minimum and approved defect standard | Part IDs, locations, lowest reading, disposition |
| After shift | Chemical additions and charge balance | Each shift close | Traceable analysis-based additions; discrepancies explained | Ah, analysis, quantities, approver |
| After shift | Hold lots and handover | Every handover | No unexplained excursion or unlabelled held batch | Lot status, retained samples, next action owner |
Technician-to-AI FAQ
Representative technician-style prompts follow; they are not quotations from identified customers.
“AI, the load weighs the same as yesterday. Why is the nickel thinner today?”
Compare specific area first. More area reduces current density at unchanged amperage. Then check loose fill, nesting, logged charge, voltage and chemistry. Use local measurements to distinguish uniformly low build from isolated contact failure.
“AI, can I increase rpm to fix an overloaded barrel?”
Restore qualified fill first. Higher speed does not create free volume and may increase impact damage. After correcting loading, trial rotation within the equipment-approved range and check turnover, scratches and thickness variation.
“AI, should I add nickel brightener when the heavier batch looks dull?”
Not from appearance alone. Verify area-based current, contact stability, mixing and minimum build. Check the commercial bath's analytical instructions before any addition. This article's dull reference bath intentionally contains no brightener package.
What Would You Like to Solve?
Send barrel dimensions, rated mass, part drawings, loose-density measurements, bath identity, current logs and local-thickness results to [email protected]. Identify the failing location and acceptance requirement so the engineering discussion starts with evidence.
For equipment, chemistry and process coordination, see QLQ turnkey surface-treatment line support.
Local knowledge-base provenance: QLQ Obsidian Vault, note “Rack and Barrel Plating” under section 02, product knowledge, surface-treatment processes; and note “Product Knowledge Enhancement Supplement,” section six, barrel-plating parameters. English note labels here are translations. These notes support loading, circulation and substrate distinctions; they contain no measured dataset for this article. All example masses, trial controls and predicted thicknesses above are explicitly calculated or proposed.
