Barrel Anode Configuration: Panel vs Stick Data Comparison
Changing anode shape is a capital and process-control decision, not a shortcut to thicker nickel. Management should compare minimum coating thickness, electricity per accepted batch, maintenance time, and repeatability as the anodes dissolve. A panel can improve coverage in one tank and obstruct circulation in another; distributed sticks can be adjustable but require more individually reliable connections.
This guide defines a controlled nickel-stage comparison for small hardware. Published chemistry, calculated examples, proposed commissioning limits, and unmeasured trial results are identified separately. No verified QLQ panel-versus-stick experiment was available in the reviewed knowledge base.
Define the Hardware Before Comparing Performance
Here, panel means a solid rectangular soluble nickel plate; stick means a solid cylindrical soluble nickel rod. A broad titanium basket filled with nickel pieces is a different configuration. Do not combine basket and solid-plate results under the same label: geometry, refill practice, and electrical interfaces differ.
Specify metal grade, immersed dimensions, quantity, spacing, bag condition, and connection arrangement on a controlled drawing. Use the same nickel grade for both arms. Otherwise a dissolution difference could be wrongly attributed to shape.
| Decision factor | Panel arrangement | Stick arrangement | Evidence needed |
|---|---|---|---|
| Coverage | Broad continuous face | Discrete positions along barrel | Critical-site thickness map, including ends |
| Adjustment | Move or shield a large element | Alter individual positions or spacing | Drawing revision and repeat trial |
| Connections | Usually fewer connection points | More independently maintained connections | Branch-current and connection inspection |
| Service access | Large element may constrain clearance | Individual rods may be easier to remove | Timed maintenance with equipment isolated |
| Consumption drift | Thickness and edges change | Diameter and end profile change | Dimensions at initial and replacement conditions |
The local QLQ notes identify load, rotation, circulation, and electrical distribution as important controls. Their uneven-deposit troubleshooting guidance includes anode adjustment, but supplies no numerical shape advantage. These principles support the investigation, not a guaranteed outcome.
Working Data & Formula Notes
Use an additive-free Watts nickel bath as the defined comparison medium. It is a complete base electrolyte for a dull deposit, not a complete bright decorative system. Brass test hardware avoids confusing geometry with an unqualified zinc-alloy preparation route. Production zinc-alloy parts require their approved undercoat before this nickel stage.
| Component | Range | Typical | Function | Replenishment |
|---|---|---|---|---|
| Nickel sulfate, NiSO4·6H2O | 240–300 g/L | 270 g/L | Main nickel source | Correct analyzed deficit and drag-out; account for soluble-anode input |
| Nickel chloride, NiCl2·6H2O | 30–90 g/L | 60 g/L | Conductivity and anode dissolution | Replenish from chloride analysis, not appearance |
| Boric acid, H3BO3 | 30–45 g/L | 40 g/L | Interfacial pH buffering | Analyze; dissolve measured correction separately |
| Deionized water | Balance to working volume | Final volume | Solvent | Restore evaporation loss before analyzing |
| Approved dilute pH adjuster | As needed; pH 3.5–4.5 | pH 4.0 | Bulk pH control | Meter under circulation using an approved procedure; remeasure |
| Organic brightener, leveler, wetting package | Excluded from this base trial | 0 added | Avoid additive-package confounding | For production, use the supplier's complete qualified package |
The salt ranges are drawn from the Nickel Institute Nickel Plating Handbook, Chapter 3; typical values are selected trial targets. Do not substitute anhydrous or differently hydrated salts gram-for-gram. Nickel salts and hot solutions require trained handling, exposure controls, and the applicable safety data sheets.
For a measured constituent deficit, addition mass = deficit in g/L × working volume in L ÷ active mass fraction. A 2 g/L boric-acid correction in 1,000 L requires 2 kg at 100% assay. This calculation does not authorize adding salts when the nickel balance is already rising.
Match Area and Charge: A Numerical Benchmark
Consider two fully immersed plates, each 600 × 300 × 10 mm. Counting both faces and edges, geometric wetted area totals 75.6 dm². Eight rods, each 50 mm diameter and 600 mm immersed length, provide 78.5 dm² including both end faces. These are calculated comparison dimensions, not recommended QLQ equipment specifications.
At 150 A, nominal anode current densities are 1.98 A/dm² for panels and 1.91 A/dm² for sticks. The rod arrangement has approximately 4% more geometric area. Disclose this mismatch or resize before testing. Faces screened by fixtures or positioned against tank walls cannot automatically be credited as equally effective.
Charge-based nickel thickness: t = 12.29 × η × Q/A, where t is micrometers, η is cathodic current efficiency as a fraction, Q is ampere-hours, and A is total workpiece area in dm². The coefficient follows Faraday's law for divalent nickel using molar mass 58.69 g/mol and density 8.90 g/cm³.
For 150 A over 60 minutes, A = 300 dm² and an assumed η = 0.95, calculated average thickness is 5.84 µm for either geometry. This is a mass-balance benchmark, not a predicted minimum thickness or measured result.
Consequently, anode shape alone does not earn additional thickness at identical delivered charge and efficiency. Any actual difference must be investigated through efficiency, distribution, contact, or area estimation. Calculate energy from integrated voltage × current × time; a voltage reduction earns savings only if accepted output and coating requirements remain unchanged.
Experimental Data Table and Qualification Design
Evidence limitation: measured film thickness, salt-spray performance, and hardness are unavailable. The following table is an executable paired-batch record, not fabricated experimental evidence. “Pending” cells must be replaced by signed laboratory results before claiming superiority.
Run at least three matched batch pairs, alternating configuration order to reduce time-related bias. Use one part lot, identical preparation, barrel, load area, speed, current program, bath analysis, and post-treatment. Document the closest safe clearance and position of every anode. Choose that clearance through equipment review, not this article.
| Metric | Panel batches P1–P3 | Stick batches S1–S3 | Test condition |
|---|---|---|---|
| Delivered charge | 150 Ah target per batch | 150 Ah target per batch | Log actual current integral; 150 A × 60 min nominal |
| Calculated average nickel thickness | 5.84 µm | 5.84 µm | 300 dm²; assumed 95% efficiency; not measured |
| Measured thickness: mean, minimum, variation | Pending | Pending | 30 randomly selected parts/batch; three predefined sites/part; calibrated method |
| Salt-spray result | Pending | Pending | Same complete coating stack; customer-approved exposure, rating and sampling |
| Deposit microhardness | Pending | Pending | Matched witness deposits; laboratory-approved thickness and indentation load |
| Energy and rejects | Pending | Pending | Integrated electrical energy; accepted kg and defects classified by cause |
A fixed witness coupon can help track bath condition but does not reproduce tumbling contact. Keep actual-part measurements as the distribution endpoint. Thin deposits may produce substrate-biased hardness readings; use suitably thick witnesses and report the method. Salt-spray resistance belongs to the entire substrate/undercoat/nickel/topcoat system, not the anode shape alone.
Analyze each batch separately before pooling. Ninety readings from one batch are not ninety independent production trials. Predeclare the required minimum thickness and acceptable defect rate from the product specification; then compare paired batch differences, spread, and measurement uncertainty.
Normal Fluctuation Bands vs Investigation Thresholds
These are proposed commissioning guardrails, not universal failure thresholds. Validate them on the actual bath and hardware. An action limit means pause the comparison, investigate, and assess affected batches; it does not prove that a deposit has failed.
| Parameter | Normal trial band | Danger / action threshold | Response |
|---|---|---|---|
| Bulk pH | 3.8–4.2 | <3.5 or >4.5 | Confirm calibration; correct by approved procedure |
| Bath temperature | 53–57°C | <50 or >60°C | Check probe and heating; suspend paired trial |
| Nickel sulfate, hexahydrate basis | 260–280 g/L equivalent | <240 or >300 g/L | Check working volume and nickel balance |
| Nickel chloride, hexahydrate basis | 55–65 g/L equivalent | <30 or >90 g/L | Verify chloride assay; review dissolution |
| Boric acid | 37–43 g/L | <30 or >45 g/L | Analyze and inspect for crystallization |
| Total charge | 147–153 Ah/batch | Outside 142.5–157.5 Ah | Exclude from matched comparison; assess lot |
| Estimated load surface area | 294–306 dm² | Outside 285–315 dm² | Recalculate part count and area |
| Loaded voltage trend | Within ±5% of configuration baseline | >10% sustained rise at equal current | Inspect contacts, bags, flow and chemistry |
Establish a separate voltage baseline for each arrangement. Averaging both can hide a genuine configuration difference. Track trends against cumulative ampere-hours and anode dimensions, not merely calendar days.
Engineer Notes
- Isolate before repositioning. Apply the site's lockout procedure; verify mechanical clearance through the full barrel motion before restoring power.
- Measure consumable geometry. Record panel thickness or rod diameter at marked positions; repeat near the approved replacement condition.
- Check individual branches. Use appropriately rated instruments and a qualified electrician; compare like-sized anodes instead of relying solely on rectifier current.
- Standardize bags. Fit equivalent clean bags and document installation. Inspect for tears, sludge accumulation, or obstruction without changing chemistry simultaneously.
- Freeze the load recipe. Count parts, estimate area, record loaded speed, and inspect danglers. Hold nesting-prone parts out of the baseline trial.
- Separate maintenance effects. Run a cleaned original arrangement before buying new hardware; otherwise cleaning may be mistaken for a shape benefit.
- Trace interventions. Record additions, operator, drawing revision, and exact time. Quarantine unexplained outlier batches until quality disposition.

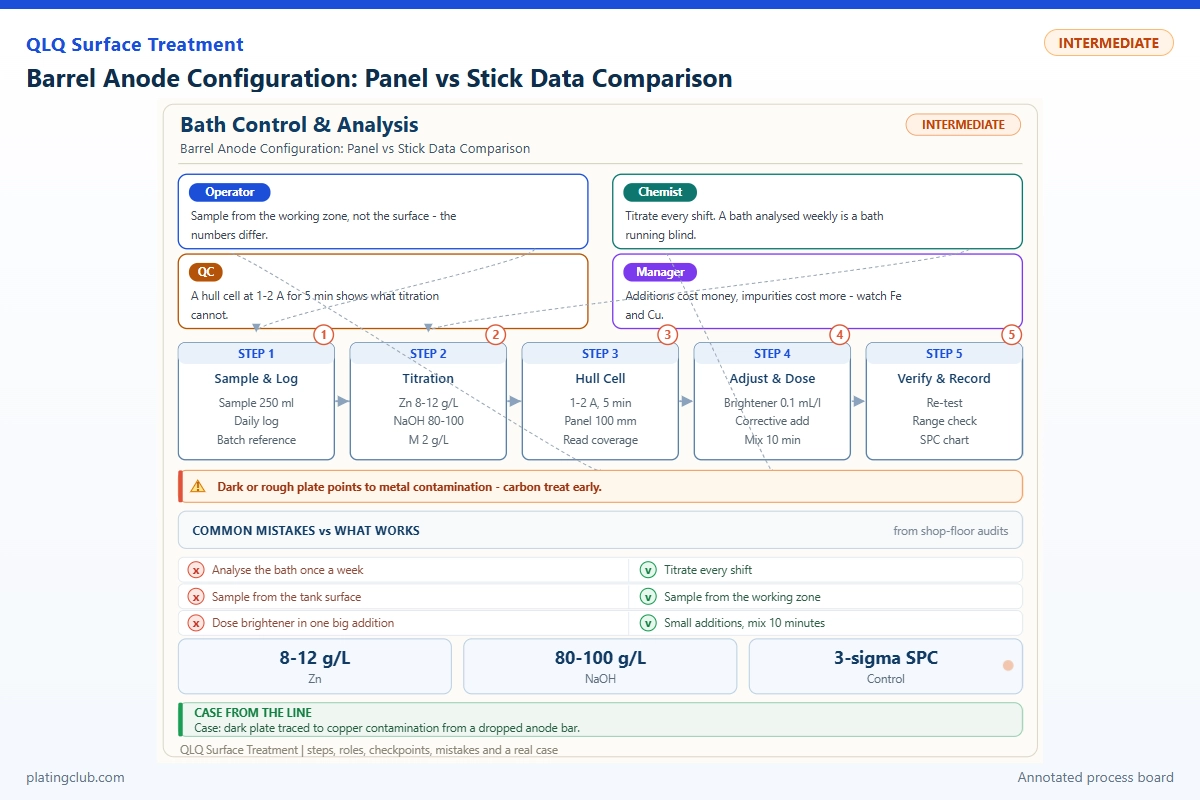

Shift Checks
| Shift stage | Check item | Frequency | Acceptance criterion | Record |
|---|---|---|---|---|
| Before shift | Anodes, bags, connections, clearance | Each startup / configuration change | Approved drawing; no tears, loose hooks or interference | Inspection and revision ID |
| Before shift | Volume, pH, temperature, analysis | Each shift; salts per lab plan | Validated control bands; current analysis available | Bath log / laboratory report |
| During shift | Load, rotation, contact stability | Every batch | Approved load recipe; no unexplained interruption | Batch traveler |
| During shift | Current, voltage, temperature | Continuous logging; review each batch | Charge band met; no sustained action-limit breach | Trace linked to batch ID |
| During shift | Critical-site thickness / appearance | First batch after change; sampling plan thereafter | Product specification, not average alone | Measurement map / disposition |
| After shift | Anode consumption, additions, rejects | Each shift | Reconciled balance; unresolved deviations handed over | Shift summary / action owner |
Two Implementation Scenarios and the Management Gate
Scenario A: slider batches with thin recesses. First verify that the thin site is repeatable rather than caused by part nesting or intermittent contact. Run the approved panel arrangement against distributed rods at matched charge. Accept a change only when critical-site minima improve across paired batches without increasing rubbing damage. This is a diagnostic scenario, not a reported customer result.
Scenario B: rising voltage late in anode life. Inspect bags, connections, immersed area, and bath analysis before changing geometry. Compare new and near-replacement conditions for both arrangements. If the apparent benefit disappears after cleaning, prioritize maintenance. If it persists with equal preparation, quantify energy and labor per accepted kilogram. No savings percentage is assumed.
Assign operations ownership of load and maintenance, laboratory ownership of chemistry and measurements, and quality ownership of release. Management signs the change only after qualified output, maintainability, and replacement-life performance are demonstrated. Include installation downtime and consumable inventory in the business case; avoid optimizing rectifier voltage at the expense of coating compliance.
FAQ: Technician-to-AI Questions
These are example question wordings, not quotations from verified customer conversations.
“Our panel anodes give thicker nickel than sticks at the same amps. What should I check first?”
Check integrated charge, load area, sampling sites, and actual current stability. Equal displayed amps do not prove equal ampere-hours or contact. Then compare bath conditions and anode grade. Use mass gain as a supporting efficiency check before crediting geometry.
“Can I move the stick anodes closer to fix thin nickel inside a slider?”
Not without clearance review and a controlled trial. Closer placement may redistribute current toward accessible surfaces while leaving the recess limited by local transport or nesting. Change one position variable, map the recess and exposed edge, and stop if either falls outside specification.
“What data do I need before management approves replacing all our panel anodes?”
Provide paired batch thickness distributions, product-level test results, electricity per accepted output, maintenance observations, and new-to-replacement geometry records. Include drawing revisions, analysis reports, uncertainty, and rejected trial reasons. A single attractive coupon is insufficient evidence.
What Would You Like to Solve?
Send the anode drawing, nickel-stage analysis, barrel dimensions, part area estimate, current trace, coating specification, and critical-site thickness map to [email protected]. QLQ's knowledge base describes equipment, consumables, and process support for barrel plating. For broader integration, review surface-treatment lines, equipment, chemicals and support. Follow Huige for practical process discussions.
Local grounding: QLQ knowledge-base files “Rack and Barrel Plating,” “Electroplating Defect Analysis,” and “Electroplating Brighteners and Additives,” under 02-Product Knowledge System / 07-Surface Treatment Processes (English translations of source filenames). Their draft status and absence of comparative test records limit the claims made here. All configuration calculations and trial guardrails are explicitly proposed engineering examples.
