Chromium Plating

Barrel Chromium Plating — Decorative, Black & Hard Chrome

Chromium plating for barrel: decorative Cr (hexavalent vs trivalent), black chrome, hardness HV 800-1000. Barrel challenges: low current efficiency, throwing power limitations. Temperature and current density parameters.

Industrial roller plating production line with multiple chrome plating tanks and metal drive shafts in a factory setting.

Why Barrel Chromium

Chrome is the hardest and most wear-resistant common decorative finish — but barrel chrome is challenging due to low current efficiency and coverage issues

Decorative Chrome

Blue-white mirror, ultra-wear-resistant

Cr⁶⁺ vs Cr³⁺

Trivalent is eco, REACH/RoHS ready

Black Chrome

Solar, optics, luxury hardware

Industrial roll chrome plating production line with rusty gears and control panel

Barrel Challenge

~15% efficiency, poor throwing power

Barrel vs Rack — Chromium Comparison

Key differences between barrel chrome and rack chrome

ParameterBarrel PlatingRack Plating
Current density5-15 A/dm²10-30 A/dm²
Temperature (decorative)35-50 °C40-55 °C
Temperature (hard)50-65 °C55-70 °C
Barrel rotation4-8 rpmN/A
Throwing powerPoor (barrel shields current)Fair (direct connections)
Coverage on complex shapesPartial — edges only in barrelGood with aux anodes
Current efficiency10-15%12-18%
Cost per part (decorative)MediumHigh
▼

Barrel Chromium — Process Steps

Overcoming low efficiency and coverage challenges in barrel chrome plating

1Bath Make-up — Hexavalent vs Trivalent

Hexavalent Cr (CrO₃ 200-300 g/L + H₂SO₄ catalyst) — classic, high durability. Trivalent Cr (Cr³⁺ salts + organic complex) — REACH-compliant, better throwing power in barrel.

Key Parameters
Hexavalent CrO₃: 200-300 g/L
Catalyst H₂SO₄: CrO₃:H₂SO₄ = 100:1
Trivalent Cr³⁺: 10-20 g/L + complexants
Barrel-friendlier option: Trivalent (better throwing power)
AfterIndustrial electroplating production line with metal rollers and gears in a factory setting.

2Barrel Loading & Plating

Barrel chrome requires lower current density (5-15 A/dm²) vs rack (10-30 A/dm²). The barrel restricts current flow — only parts near the barrel openings plate well. Part orientation inside barrel matters.

Key Parameters
Decorative Cr current: 5-15 A/dm²
Hard chrome current: 10-30 A/dm²
Barrel rotation: 4-8 rpm
Temperature: 35-50 °C (decorative) or 50-65 °C (hard)
Industrial roll plating production line with gear-driven drums and blue-green electrolyte solution in a factory setting.

3Black Chrome

Black chrome deposits a Cr-Cr₂O₃ composite coating. Used for solar absorbers, optical components and fashion hardware. Needs precise temperature control.

Key Parameters
Current density: 8-20 A/dm²
Temperature: 25-40 °C
Additive: Organic black chrome catalyst
Thickness: 0.2-3 μm
Close-up of silver metallic square lock inserts on black background

4Coverage & Throwing Power Management

Barrel chrome's main challenge: parts in the center get little to no coverage. Solutions: use 'window' barrels with more open area, reduce batch size, use shaped anodes.

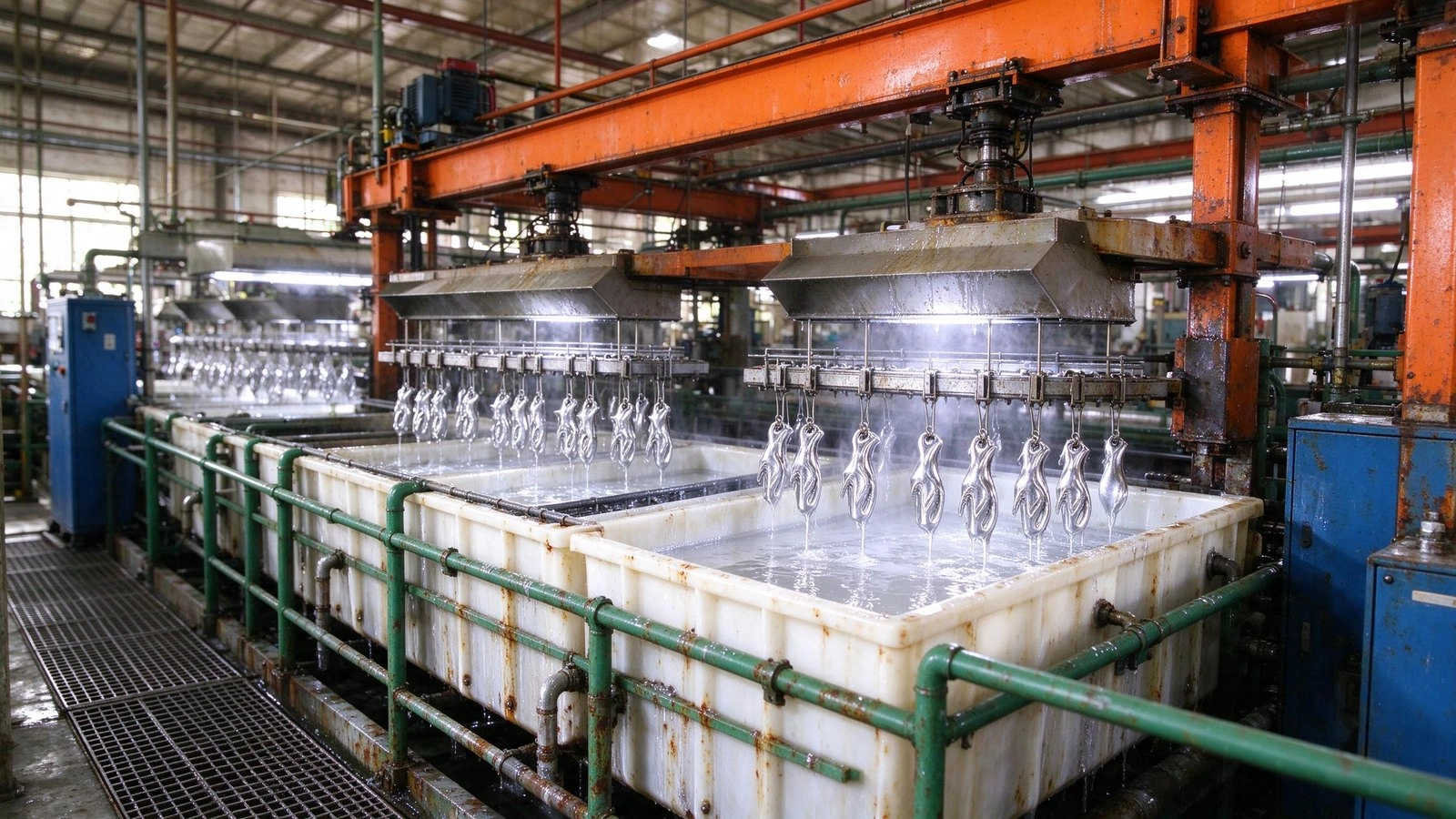

Rack chromium plating tank with exhaust hood
Rack chrome plating runs under an exhaust hood for safety
Key Parameters
Barrel open area: > 40% recommended
Max batch size: 40-50% of barrel volume for chrome
Anode type: Lead (Pb-Sn or Pb-Sb)

5Treatment & Rinse

Chrome solution is toxic — thorough rinsing and fume extraction are mandatory. Cr⁶⁺ reduction treatment for waste water. For trivalent Cr, simpler waste management.

Key Parameters
Rinse stages: 3+ with dedicated chrome recovery
Fume extraction: Essential (Cr⁶⁺ mist is carcinogenic)
Waste treatment: Cr⁶⁺ reduction → precipitation or Cr³⁺ direct precipitation
▼

Chromium Types Compared

Choose by hardness, color, environmental requirements and barrel compatibility

TypeColorHardness (HV)EfficiencyBarrel-SuitableREACHBest Use
Hexavalent decorativeBlue-white700-90012-18%FairNoPremium hardware
Trivalent decorativeWhite-grey600-80015-22%GoodYesEU-bound, eco orders
Black chromeDeep black400-60015-20%GoodYesSolar, fashion, optics
Hard chrome (hex)Matte grey800-100012-18%LimitedNoIndustrial (functional)
Hard chrome (trivalent)Grey700-90015-22%LimitedYesIndustrial (eco)

📌 Chromium Cheat Sheet

Decorative Cr current5-15 A/dm² (barrel)
Rack Cr current10-30 A/dm²
Hardness decorativeHV 700-900
Black chrome hardnessHV 400-600
Current efficiency10-18%
Barrel rotation (Cr)4-8 rpm
Barrel open area>40%
Trivalent CrREACH/RoHS compliant
⚠ Barrel chrome has the highest reject rate of all barrel finishesLow current efficiency (~15%), poor throwing power, and sensitivity to bath contamination make barrel chrome the most technically challenging finish. Plan for 10-15% reject rate on first runs. Key tips: (1) run small batches (40-50% barrel fill), (2) use high-open-area barrels, (3) pre-heat barrel + parts to bath temperature before immersion, (4) never let Cr⁶⁺ solutions dry on barrel parts (corrosion spots). Consider trivalent chrome for barrel lines — better coverage offsets the slightly lighter color.

FAQ

Why is chrome so much harder to barrel-plate than nickel?
Three reasons: (1) Chrome current efficiency is only 10-18% vs. nickel's 90%+ — most of the current goes to hydrogen evolution, not metal deposition. (2) Chrome requires very high current density (5-30 A/dm²) that barrels struggle to deliver evenly. (3) Chrome throwing power is poor — the barrel mesh acts as a current shield, leaving interior parts uncoated. Trivalent chrome helps with reason (3).
Trivalent vs hexavalent chrome — which for barrel lines?
Trivalent Cr is strongly preferred for barrel lines. It has better throwing power (improves coverage in barrel centers), wider current density range (more forgiving), and simpler waste treatment. The only downside: the color is slightly warmer (less blue-white) than hexavalent chrome. For most decorative applications, the difference is acceptable.
How do I know if my barrel chrome coverage is adequate?
Visual inspection: parts at the barrel 'window' should match parts in the center. Use a simple copper test: after chrome, immerse in dilute CuSO₄ — copper deposits on exposed base metal (no chrome coverage) within 10 seconds. Any pink spots = insufficient coverage. Adjust barrel load or use more open barrel design.
What causes 'white haze' on barrel chrome?
Bath contamination — most commonly from nickel carry-over (Ni²⁺ above 50 ppm in chrome bath). Also: temperature too low (<35 °C) or sulfate ratio incorrect. Carbon treat the chrome bath and check the CrO₃:H₂SO₄ ratio.
Can I do hard chrome in a barrel?
Limited — hard chrome needs higher current density (30+ A/dm²) and temperature (55-70 °C). Most barrel lines cannot deliver this. Hard chrome is typically done on rack or in a dedicated fixture. Barrel 'hard chrome' is usually decorative chrome on hardened base material.
