Professional Zinc Alloy Surface Finishing Solutions

Barrel Painting

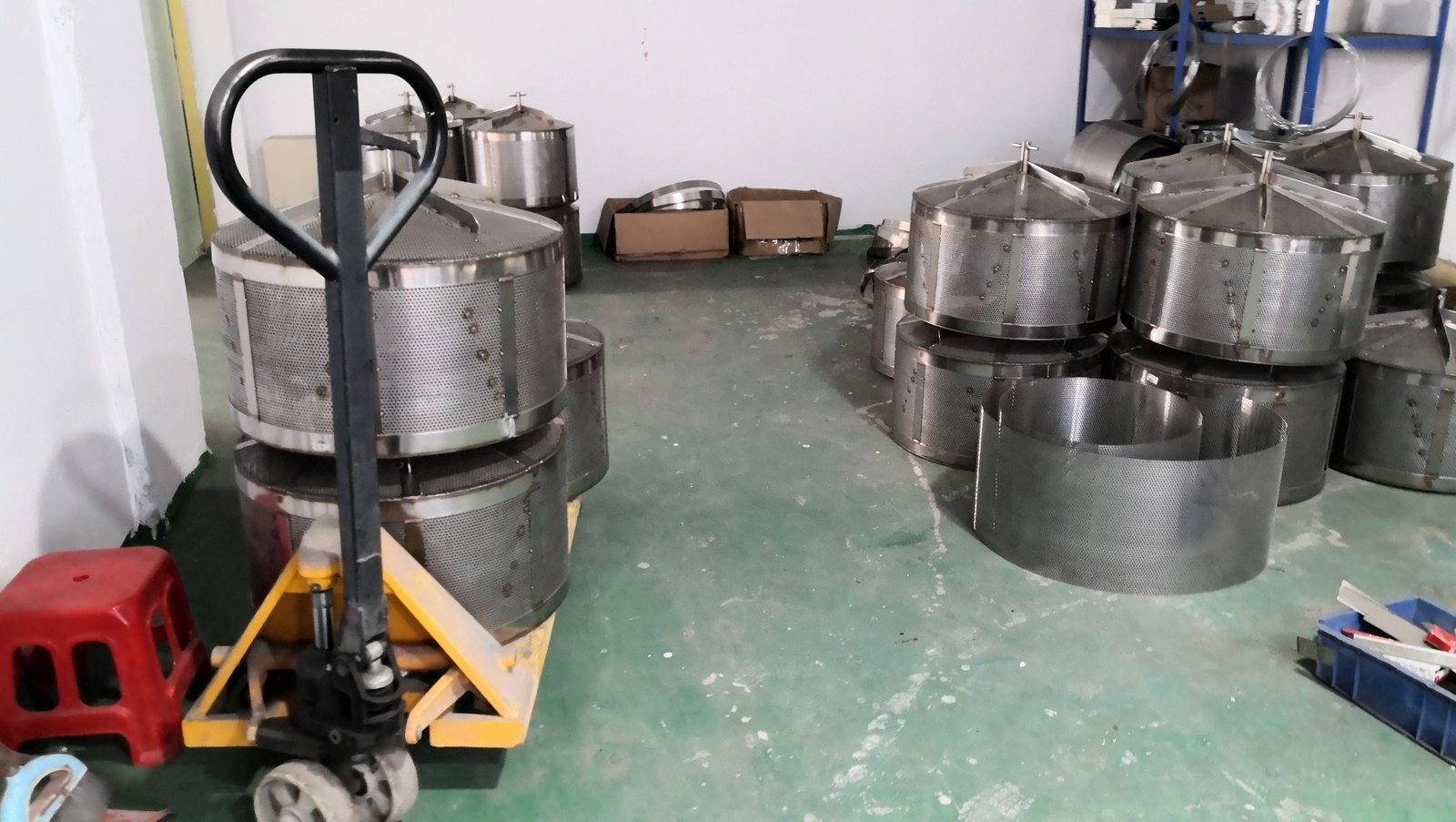

Tumble spray-painting workshop - small parts are painted in batches in
Tumble spray-painting workshop - small parts are painted in batches in a rotating barrel - QLQ workshop photo

Barrel Spray Painting — High-Volume Batch Coating for Small Hardware

Mass-production painting for zipper sliders, buttons and tiny hardware. Tumbling barrel + spray gun, controlled rotational speed and multi-pass thin coats.

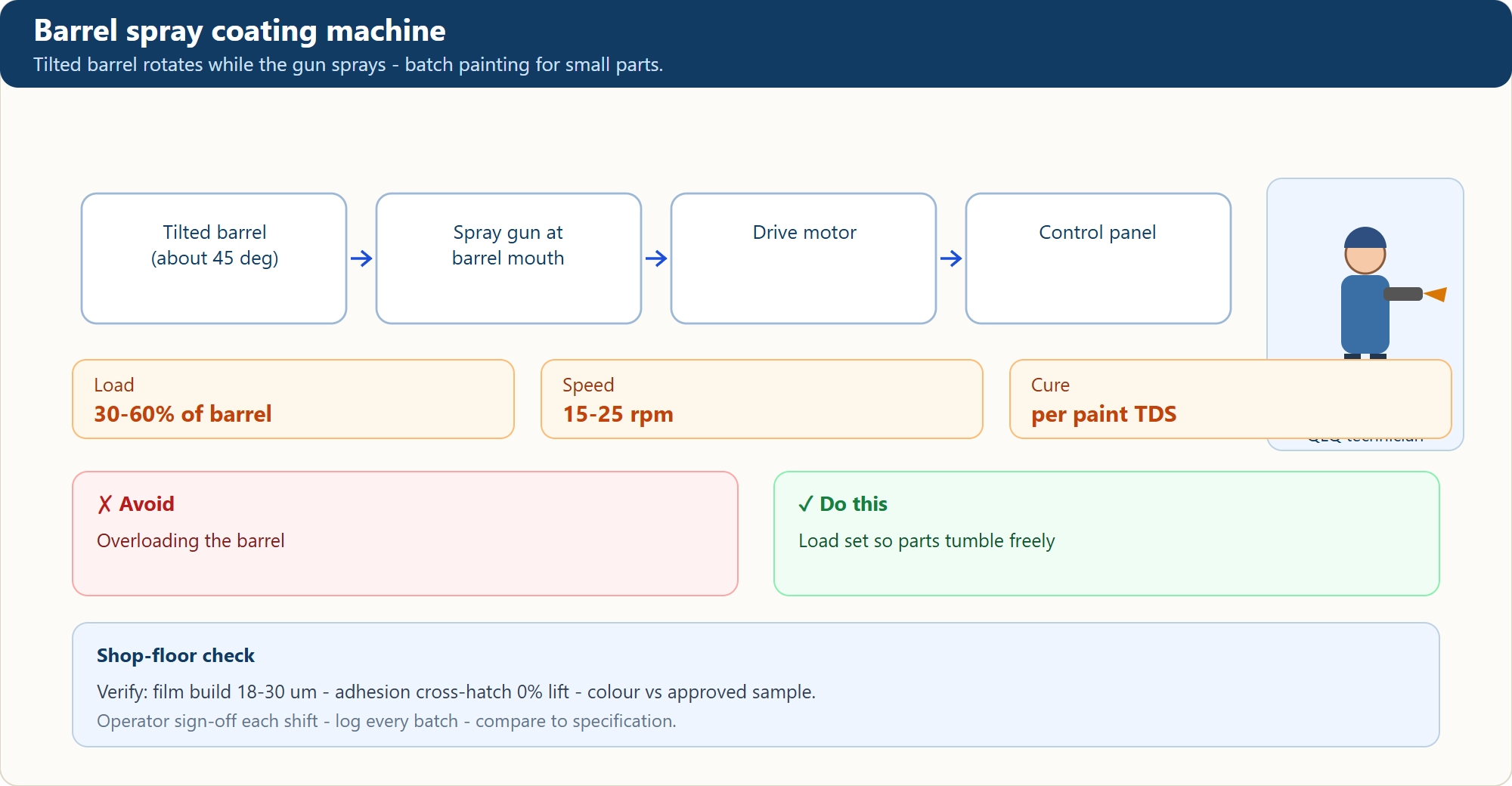

Barrel spray coating machine
Barrel spray coating machine - Tilted barrel rotates while the gun sprays - batch painting for small parts.

The Barrel Painting Process

Tumble, spray, flash, repeat — the production rhythm for high-volume small parts

1Barrel Spray Machine Setup

Tilted rotating barrel (30–45°) with a fixed spray gun aimed at the rolling bed of parts. The tumbling action exposes every surface to paint mist. Adjust tilt angle to control dwell time.

Key Parameters
Barrel tilt: 30–45°
Barrel diameter: 500–800 mm
Gun position: Fixed, aimed at part bed

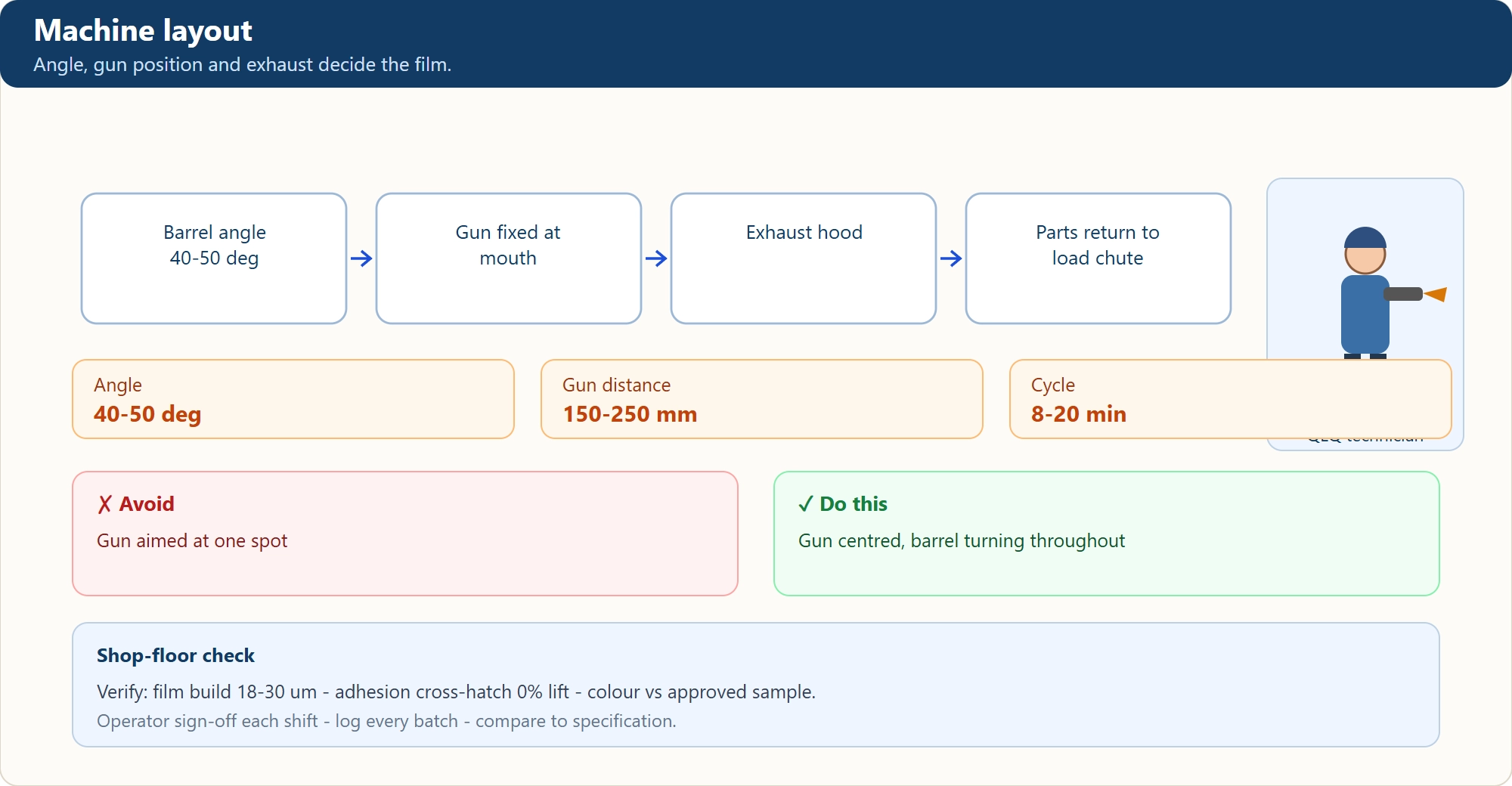

Machine layout
Machine layout - Angle, gun position and exhaust decide the film.

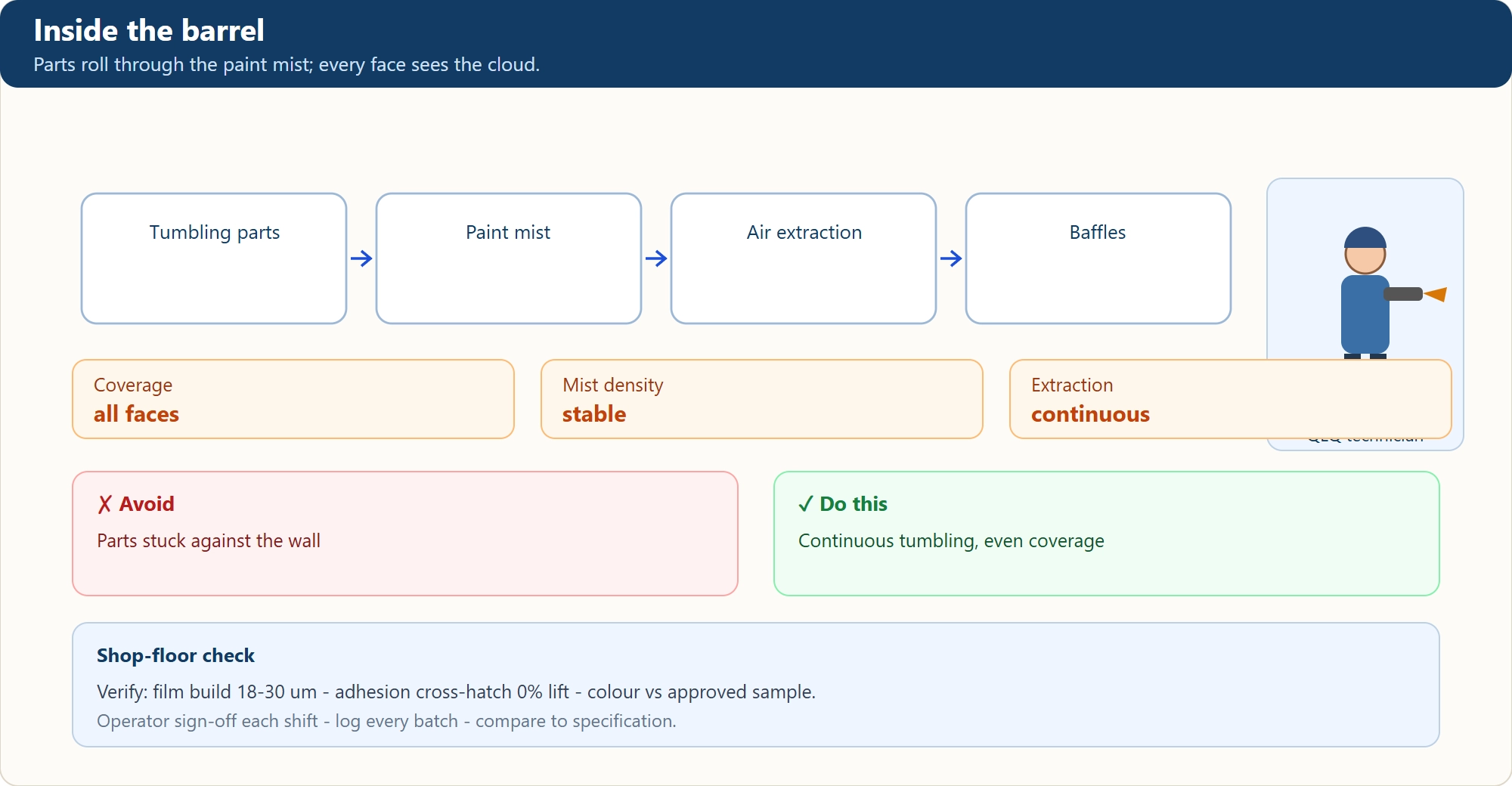

Inside the barrel
Inside the barrel - Parts roll through the paint mist; every face sees the cloud.

2Barrel Speed & Paint Parameters

Speed 15–25 rpm — too fast = parts pinned by centrifugal force, no tumbling; too slow = uneven coverage. Atomizing air pressure 0.3–0.5 MPa. Fan width matched to barrel opening.

Key Parameters
Barrel speed: 15–25 rpm
Atomizing pressure: 0.3–0.5 MPa
Fluid pressure: 0.1–0.3 MPa
Fan width: 150–250 mm

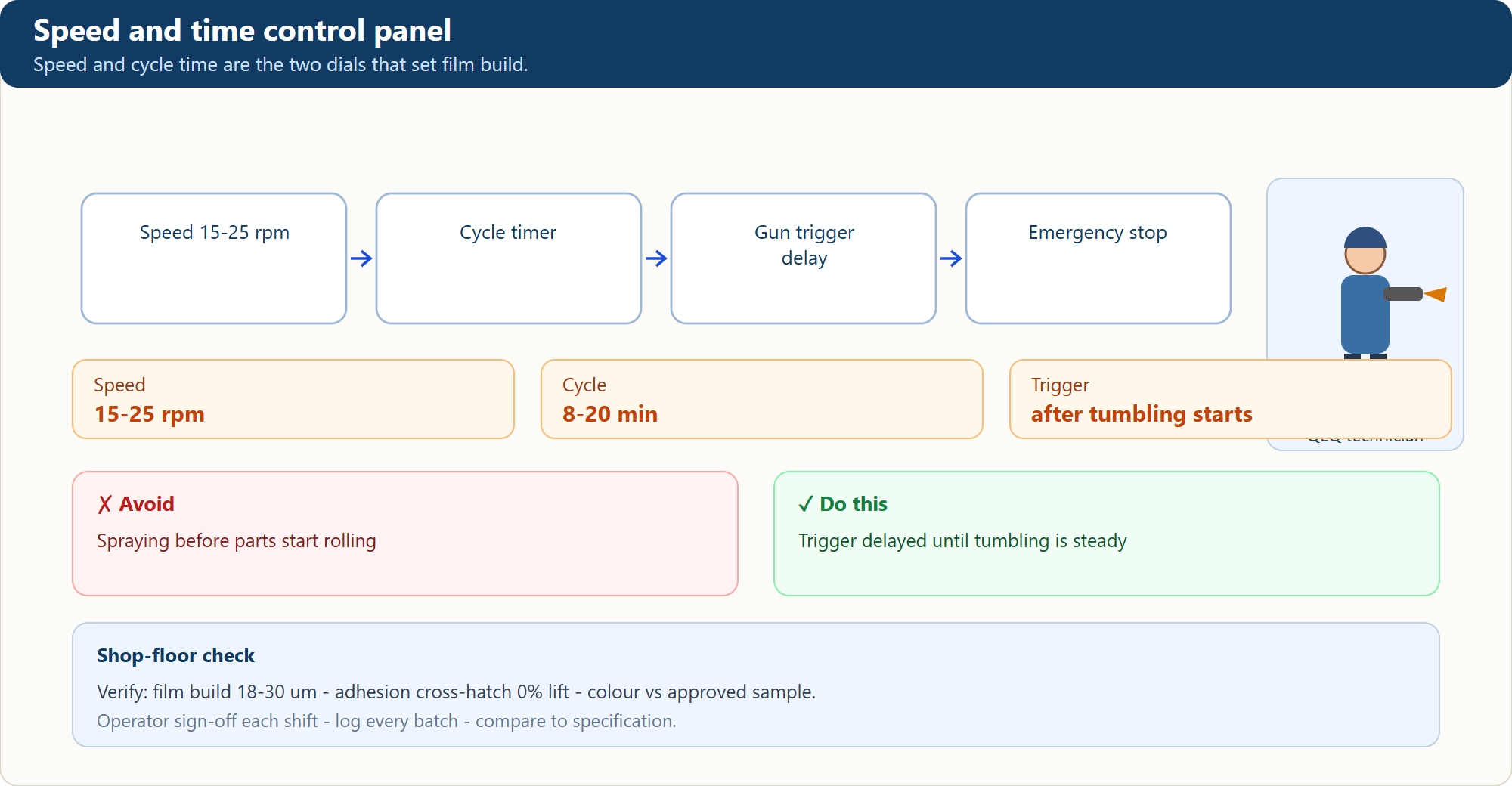

Speed and time control panel
Speed and time control panel - Speed and cycle time are the two dials that set film build.

3Multi-Pass Thin Coating

3–5 thin passes with 30–60 s flash-off between coats. Thick single-layer paint runs, sags and traps solvent — thin layers cure evenly and build a smooth finish. Total film build 30–60 μm.

Key Parameters
Passes: 3–5
Flash-off: 30–60 s
Layer thickness: 10–15 μm/pass
Total build: 30–60 μm

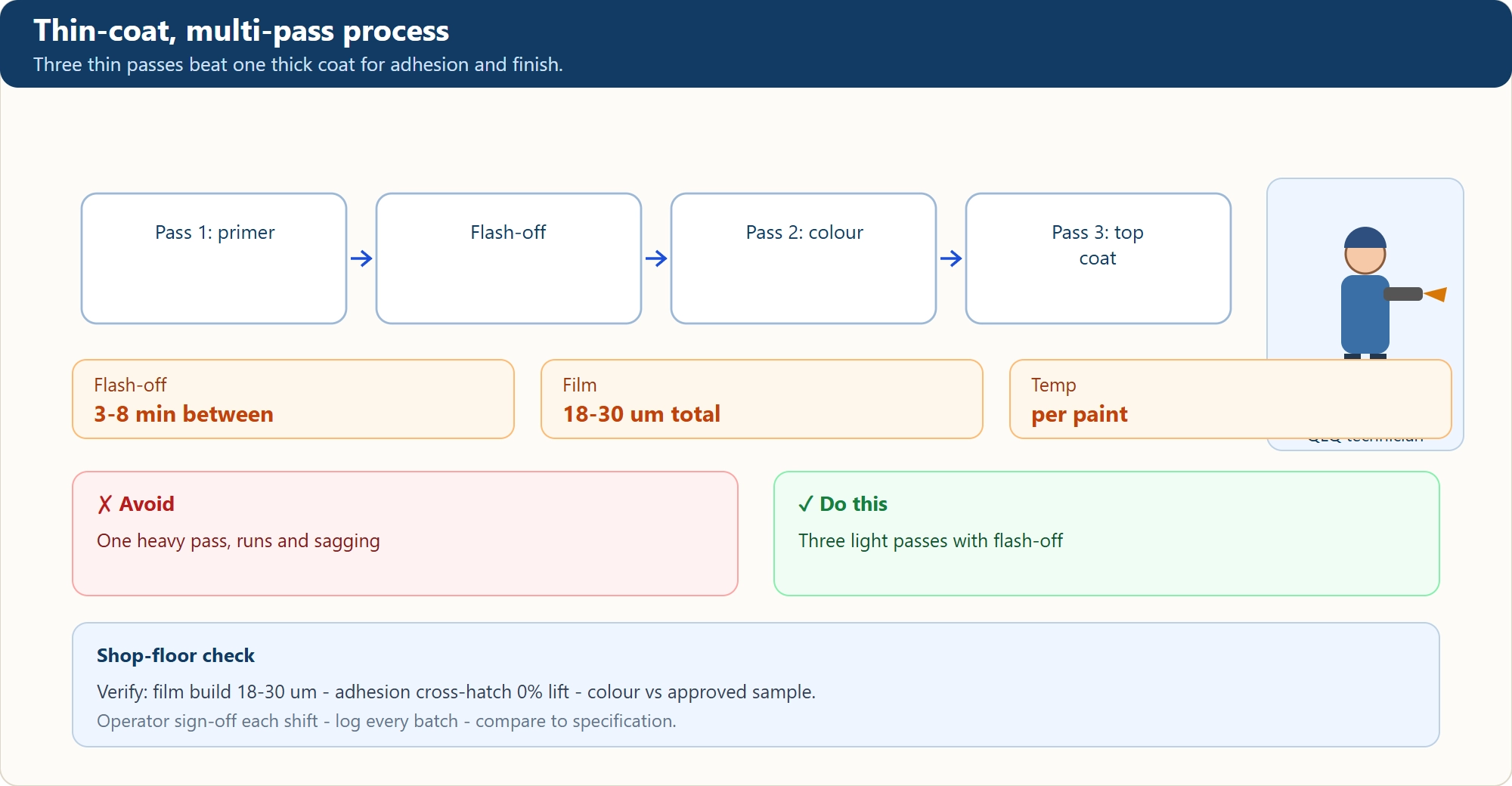

Thin-coat, multi-pass process
Thin-coat, multi-pass process - Three thin passes beat one thick coat for adhesion and finish.

4Unload & Inspection

Dump barrel contents onto a vibratory screen to separate parts. Remove any fused pairs (two parts that stuck together). Visual inspection under D65 light for coverage uniformity.

Key Parameters
Separation: Vibratory screen
Inspection: 100% visual
Fused pairs rate: < 0.5%

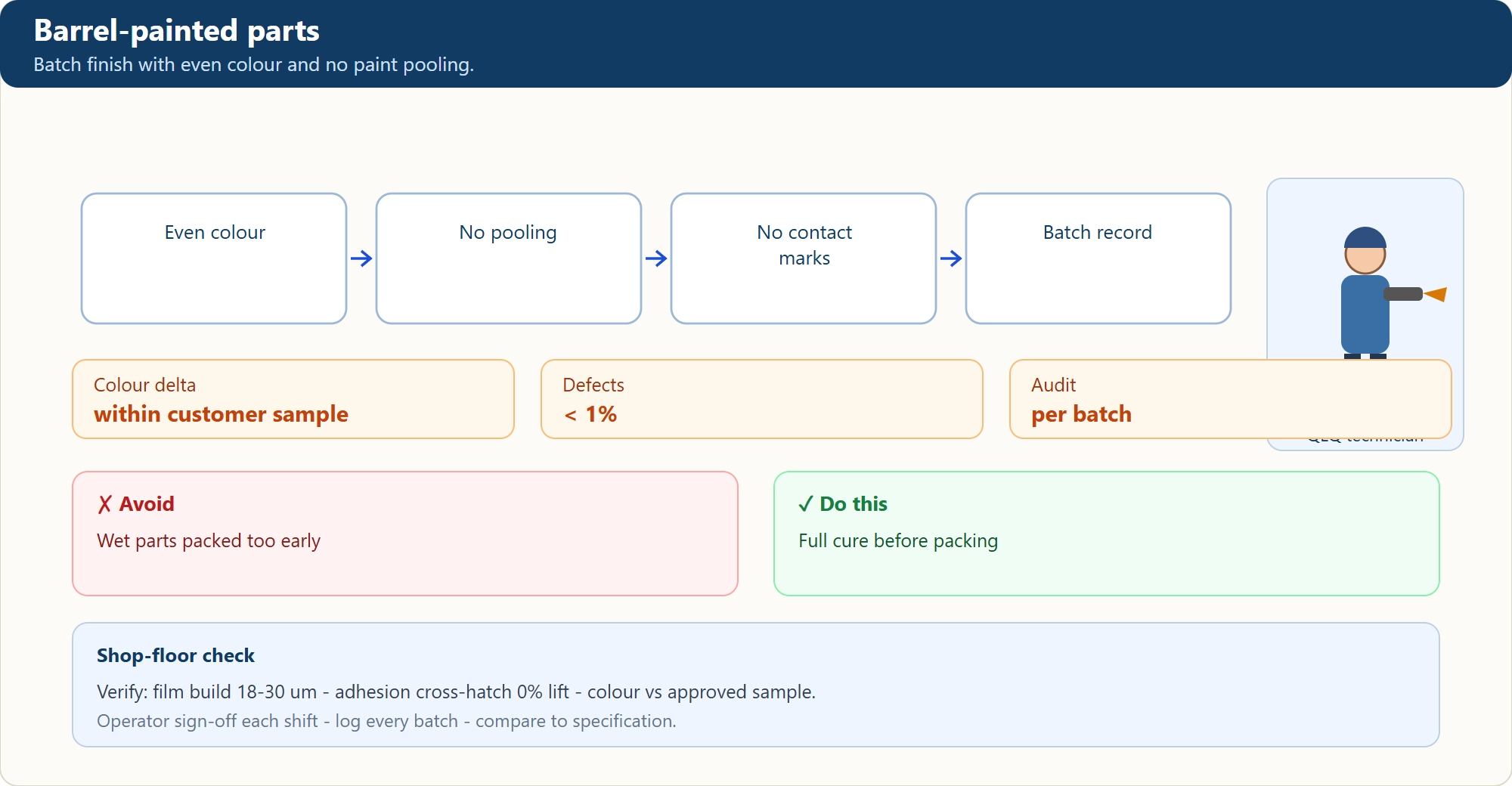

Barrel-painted parts
Barrel-painted parts - Batch finish with even colour and no paint pooling.
▼

Barrel vs Hanger Painting — When to Choose Barrel

Volume and part size are the deciding factors

FactorBarrel PaintingHanger Painting
Part sizeSmall (< 30 mm)Small to large
Volume per shift10,000–100,000 pcs500–5,000 pcs
UniformityGood (tumbling effect)Excellent
Paint wasteHigher (over-spray on barrel wall)Lower
Surface damage riskLow (parts tumble on each other)None (suspended)
Operator skill neededMediumHigh

📌 Barrel Painting Cheat Sheet

Barrel speed15–25 rpm
Tilt angle30–45°
Atomizing pressure0.3–0.5 MPa
Passes3–5 thin coats
Flash-off between coats30–60 s
Total film build30–60 μm
Fused pair rate target< 0.5%
💡 Batch Consistency TipsLoad weight must be ±5% between batches — too few parts = over-sprayed and fused; too many = under-sprayed centers. Log barrel speed and air pressure every batch. Rotate spray gun nozzle every 500 cycles to maintain fan pattern.

FAQ

What is the ideal load weight for a 600 mm barrel?
3–5 kg for small sliders, 2–3 kg for tiny buttons. The rule: parts should occupy 40–60% of barrel volume, leaving room for tumbling action.
How to fix orange peel texture in barrel painting?
Orange peel = atomization pressure too low or viscosity too high. Increase atomizing air to 0.4–0.5 MPa or thin paint 5–10% with recommended thinner.
Can barrel painting do metallic or pearl colors?
Yes, but use a clear top-coat pass to protect the metallic flakes. Metallic pigments settle fast — keep the paint agitated in the pressure pot.
Why do some parts come out with bare spots?
Bare spots = shadowing. Parts concave shapes that face away from the gun don't get paint in a single pass. Re-orient the gun angle or add a second gun from a different position.
How to clean the barrel between color changes?
Run 2–3 kg of plastic pellets + solvent for 5 min at 20 rpm, dump, then air-blow the barrel. Solvent wash only — never scrape the barrel wall.

Get a Free Quote Today

Send us your samples or drawings — our engineers reply within 24 hours with pricing and technical advice.

Contact Us

Barrel / tumble painting parameters

ParameterTypicalEffect
Load weightPer drum ratingOverload gives bare patches
Rotation speedLow, steadyFast rotation bruises soft parts
Paint volumeMeasured per loadToo much pools in recesses
Drying airWarm, filteredCold air gives a dull film
Cycle timeFixed programShort cycles leave thin edges

FAQ

Which parts should never be barrel painted?

Thin walls, sharp threads and parts where two faces must stay paint-free. Use rack instead.

How do we fix bare patches?

Reduce load and increase rotation time before adding more paint - volume is rarely the real problem.
